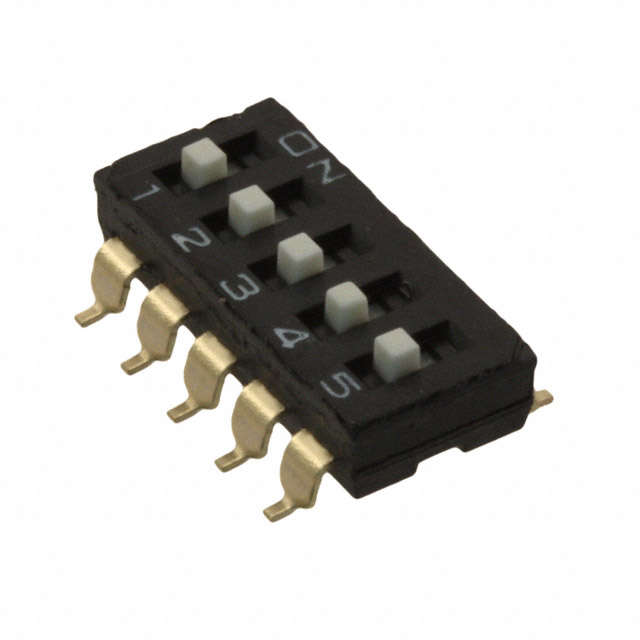

A6S-5104-H(VNM)
ActiveOmron Electronics Inc-EMC Div
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
A6S-5104-H(VNM)
ActiveOmron Electronics Inc-EMC Div
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A6S-5104-H(VNM) |
|---|---|
| Actuator Level | Raised |
| Actuator Type | Slide (Standard) |
| Circuit | SPST |
| Contact Finish | Gold |
| Current Rating (Amps) | 25 mA |
| Electrical Life | 1000 Cycles |
| Height Above Board | 4.4 mm |
| Height Above Board | 0.173 in |
| Length | 0.537 in |
| Length | 13.64 mm |
| Mechanical Life | 1000 Cycles |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | Gull Wing |
| Voltage Rating | 24 VDC |
| Washable | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.88 | |
| 10 | $ 2.34 | |||
| 35 | $ 2.08 | |||
| 105 | $ 1.88 | |||
| 280 | $ 1.71 | |||
| 525 | $ 1.61 | |||
| 1015 | $ 1.51 | |||
| 2520 | $ 1.38 | |||
| 5005 | $ 1.29 | |||
Description
General part information
A6S-5104 Series
Dip Switch SPST 5 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
