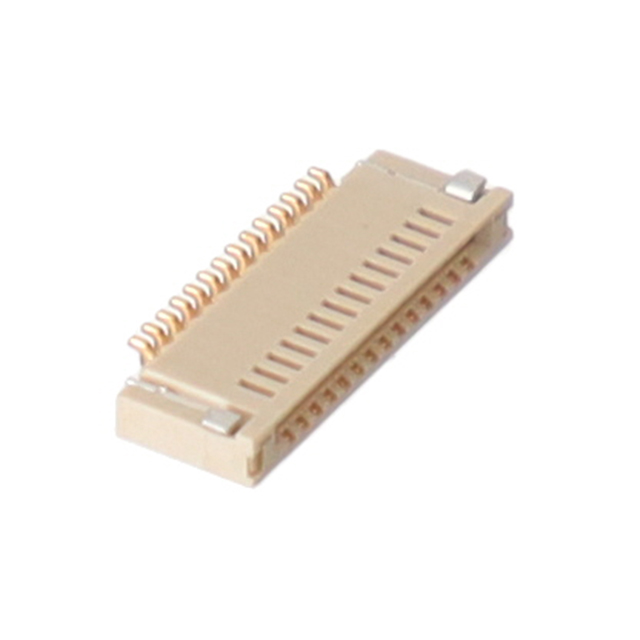

10051922-1410ELF
ActiveAmphenol ICC (FCI)
CONN FPC BOTTOM 14POS 0.5MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
10051922-1410ELF
ActiveAmphenol ICC (FCI)
CONN FPC BOTTOM 14POS 0.5MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10051922-1410ELF |
|---|---|
| Actuator Color | Black |
| Actuator Material | Glass Filled, Nylon 9T, Polyamide (PA9T) |
| Cable End Type | Straight |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 0.5 A |
| Features | Zero Insertion Force (ZIF), Solder Retention |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC |
| Height Above Board | 1.3 mm |
| Height Above Board [z] | 0.051 " |
| Housing Color | Natural |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 14 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.83 | |
| 10 | $ 0.64 | |||
| 25 | $ 0.57 | |||
| 50 | $ 0.53 | |||
| 100 | $ 0.49 | |||
| 250 | $ 0.44 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.38 | |||
| Digi-Reel® | 1 | $ 0.83 | ||
| 10 | $ 0.64 | |||
| 25 | $ 0.57 | |||
| 50 | $ 0.53 | |||
| 100 | $ 0.49 | |||
| 250 | $ 0.44 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.38 | |||
| Tape & Reel (TR) | 4500 | $ 0.32 | ||
| 9000 | $ 0.30 | |||
| 13500 | $ 0.29 | |||
| 22500 | $ 0.28 | |||
| 31500 | $ 0.28 | |||
Description
General part information
10051922 Series
14 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
