PM3BWDW8.0-CC2
ActiveBivar Inc.

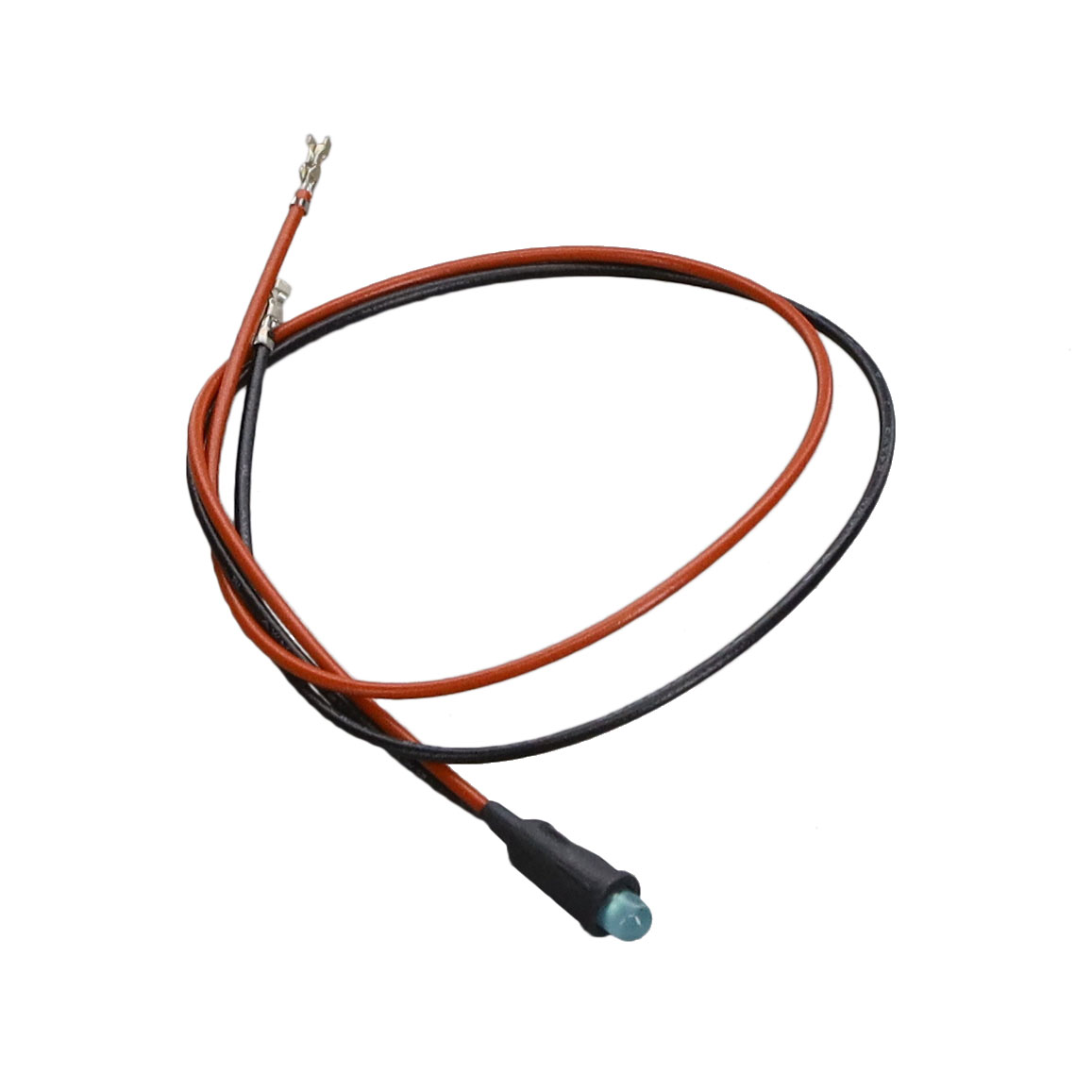

LED PANEL INDICATOR BLUE 4V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PM3BWDW8.0-CC2
ActiveBivar Inc.
LED PANEL INDICATOR BLUE 4V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PM3BWDW8.0-CC2 |
|---|---|
| Lamp Color | Blue |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 10 mcd |
| Panel Cutout Dimensions [x] | 0.16 in |
| Panel Cutout Dimensions [x] | 4.06 mm |
| Panel Cutout Shape | Round |
| Termination Style | Wire Leads - 8" (203.20mm) |
| Type | LED |
| Viewing Angle [custom] | 40 ° |
| Voltage | 4 V |
| Wavelength - Peak | 430 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 4.72 | |
| 10 | $ 3.34 | |||
| 100 | $ 2.73 | |||
| 500 | $ 2.31 | |||
| 1000 | $ 2.11 | |||
| 2000 | $ 2.03 | |||
| 5000 | $ 1.99 | |||
Description
General part information
PM3BWDW8.0 Series
LED Panel Indicator Blue Diffused 40° 4V 20mA Wire Leads - 8" (203.20mm)
Documents
Technical documentation and resources
