TLS835D2ELVSEBOARDTOBO1
ActiveDEMO BRD, 0.35A, LOW DROPOUT LINEAR REG ROHS COMPLIANT: NO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TLS835D2ELVSEBOARDTOBO1 |
|---|---|
| Board Type | Fully Populated |
| Channels per IC | 1 - Single |
| Current - Output | 350 mA |
| Regulator Type | Positive Fixed |
| Supplied Contents | Board(s) |
| Utilized IC / Part | TLS835D2ELVSE |
| Voltage - Input [Max] | 40 V |
| Voltage - Input [Min] | 3 V |
| Voltage - Output | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TLS835 Series

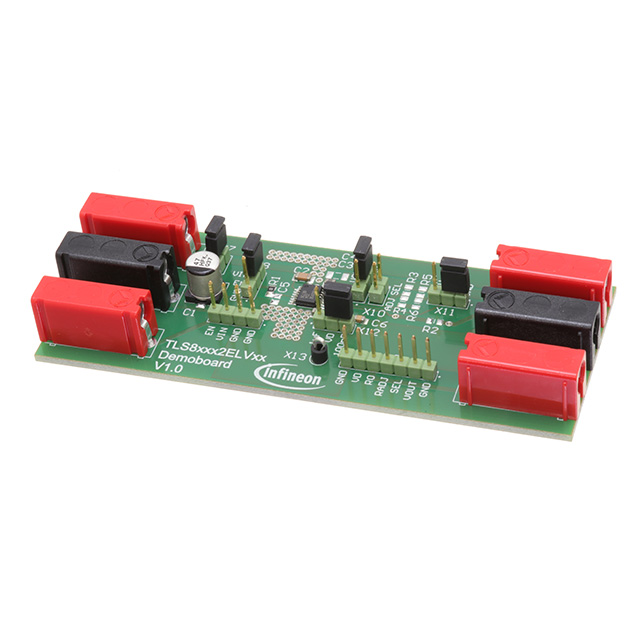

TheTLS835D2ELVSEdemoboard enables evaluation of Infineon’s latest high performance automotive LDOs with ultra-low quiescent current. The TLS835D2ELVSE has been designed for all ECUs connected to the battery within the automotive application specifically body control modules and HVAC that need a reset and enable feature. The ultra-low quiescent current of typically 20µA helps Tier1s meet OEM imposed current consumption restrictions on the ECU level. The demoboard allows for an easy plug and plan solution to evaluate the TLS835D2ELVSE with all necessary external components already mounted on the board. The TLS835D2ELVSE has a selectable output voltage where, by connecting the ‘SEL’ pin to either device input or GND, configures the device as a 5V or a 3.3V output regulator. The demoboard can also be used to evaluate the function of the SEL pin.
