AER29-29-33CB/A01

Active

Tusonix a Subsidiary of CTS Electronic Components

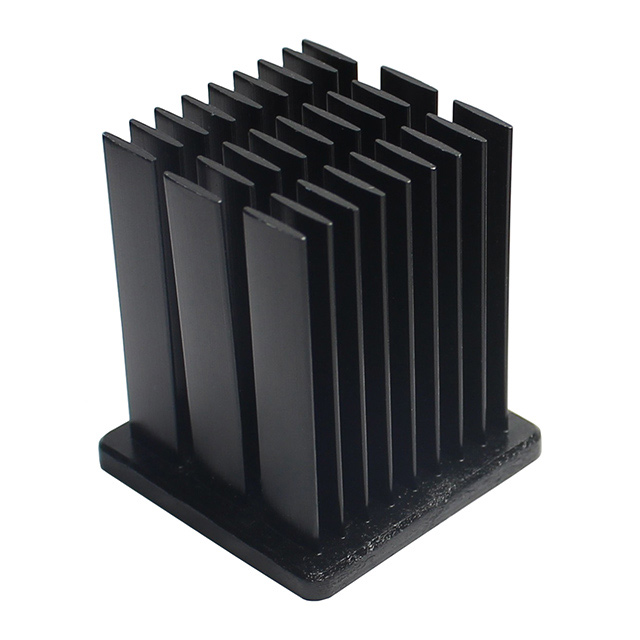

HEATSINK FORGED BLK ANO TOP MNT

Search across all available documentation for this part.

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK FORGED BLK ANO TOP MNT

Technical Specifications

Parameters and characteristics for this part

Specification	AER29-29-33CB/A01

Attachment Method	Thermal Tape, Adhesive (Included)
Fin Height	1.283 "
Fin Height	32.6 mm
Length	28.6 mm
Length	1.126 in
Material	Aluminum Alloy
Material Finish	Black Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Square, Fins
Shelf Life	24 Months
Thermal Resistance @ Forced Air Flow	200 LFM, 2.52 °C/W
Thermal Resistance @ Natural	9.18 °C/W
Type	Top Mount
Width	1.126 in
Width	28.6 mm

Part	Shelf Life	Package Cooled	Material	Thermal Resistance @ Natural	Thermal Resistance @ Forced Air Flow	Width	Width	Shape	Attachment Method	Length	Length	Type	Material Finish	Fin Height	Fin Height	Fin Height [z]	Fin Height [z]
Tusonix a Subsidiary of CTS Electronic Components AER29-29-12CB/A01	24 Months	ASIC BGA CPU LGA	Aluminum Alloy	12.68 °C/W	4.12 °C/W 200 LFM	1.126 in	28.6 mm	Fins Square	Thermal Tape Adhesive (Included)	28.6 mm	1.126 in	Top Mount	Black Anodized
Tusonix a Subsidiary of CTS Electronic Components AER29-29-33CB/A01	24 Months	ASIC BGA CPU LGA	Aluminum Alloy	9.18 °C/W	2.52 °C/W 200 LFM	1.126 in	28.6 mm	Fins Square	Thermal Tape Adhesive (Included)	28.6 mm	1.126 in	Top Mount	Black Anodized	1.283 "	32.6 mm
Tusonix a Subsidiary of CTS Electronic Components AER29-29-18CB/A01	24 Months	ASIC BGA CPU LGA	Aluminum Alloy	11.48 °C/W	3.62 °C/W 200 LFM	1.126 in	28.6 mm	Fins Square	Thermal Tape Adhesive (Included)	28.6 mm	1.126 in	Top Mount	Black Anodized
Tusonix a Subsidiary of CTS Electronic Components AER29-29-15CB/A01	24 Months	ASIC BGA CPU LGA	Aluminum Alloy	12.08 °C/W	3.82 °C/W 200 LFM	1.126 in	28.6 mm	Fins Square	Thermal Tape Adhesive (Included)	28.6 mm	1.126 in	Top Mount	Black Anodized			0.575 in	14.6 mm
Tusonix a Subsidiary of CTS Electronic Components AER29-29-23CB/A01	24 Months	ASIC BGA CPU LGA	Aluminum Alloy	10.78 °C/W	3.12 °C/W 200 LFM	1.126 in	28.6 mm	Fins Square	Thermal Tape Adhesive (Included)	28.6 mm	1.126 in	Top Mount	Black Anodized	0.89 in	22.61 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 6.84

General part information

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Alloy Top Mount
