2834274

Obsolete

Phoenix Contact

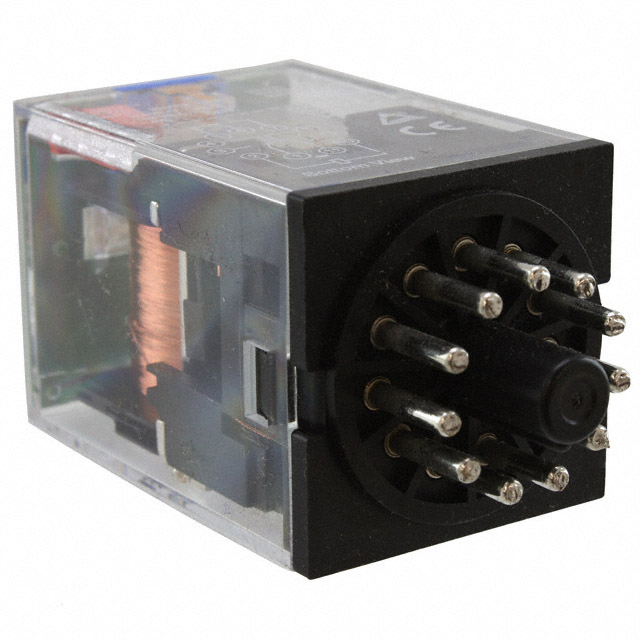

RELAY GEN PURPOSE 3PDT 10A 24V

Search across all available documentation for this part.

Obsolete

Phoenix Contact

RELAY GEN PURPOSE 3PDT 10A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Relay Type	Coil Resistance	Termination Style	Release Time	Coil Current	Operate Time	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage	Contact Rating (Current)	Contact Form	Switching Voltage	Mounting Type	Coil Type
Phoenix Contact 2834274	General Purpose	430 Ohms	Plug In 11 Pin (Octal)	6 ms	56 mA	12 ms	Silver (Ag)	-10 °C	40 °C	24 VDC	10 A	3PDT (3 Form C)	250 VAC 250 VDC	Socketable	Non Latching
Phoenix Contact 2834258	General Purpose	1.52 kOhms	Plug In 8 Pin (Octal)	20 ms	20 mA	20 ms	Silver (Ag)	-10 °C	40 °C	120 VAC	10 A	DPDT (2 Form C)	250 VAC 250 VDC	Socketable	Non Latching
Phoenix Contact 2834232	General Purpose	430 Ohms	Plug In 8 Pin (Octal)	6 ms	56 mA	12 ms	Silver (Ag)	-10 °C	40 °C	24 VDC	10 A	DPDT (2 Form C)	250 VAC 250 VDC	Socketable	Non Latching

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay 3PDT (3 Form C) 24VDC Coil Socketable
