GBU2510H_T0_00601

Active

Panjit International Inc.

BRIDGE RECT 1PHASE 1KV 25A GBU-2

Search across all available documentation for this part.

Active

Panjit International Inc.

BRIDGE RECT 1PHASE 1KV 25A GBU-2

Technical Specifications

Parameters and characteristics for this part

Specification	GBU2510H_T0_00601

Current - Average Rectified (Io)	25 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C

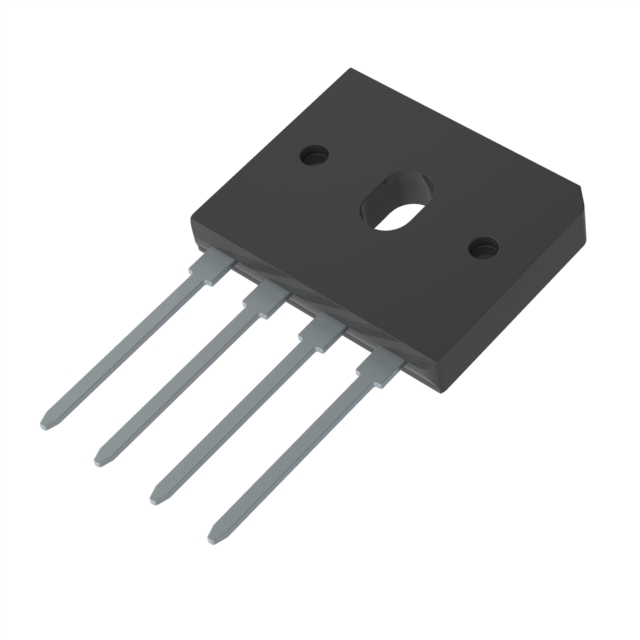

Package / Case	4-SIP, GBU
Supplier Device Package	GBU-2
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.05 V
Voltage - Peak Reverse (Max) [Max]	1000 V

Part	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Voltage - Peak Reverse (Max) [Max]	Package / Case	Diode Type	Current - Average Rectified (Io)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Reverse Leakage @ Vr	Technology
Panjit International Inc. GBU2510H_T0_00601	1.05 V	GBU-2	1000 V	4-SIP GBU	Single Phase	25 A	Through Hole	-55 °C	175 ░C	5 µA	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 1 kV Through Hole GBU-2
