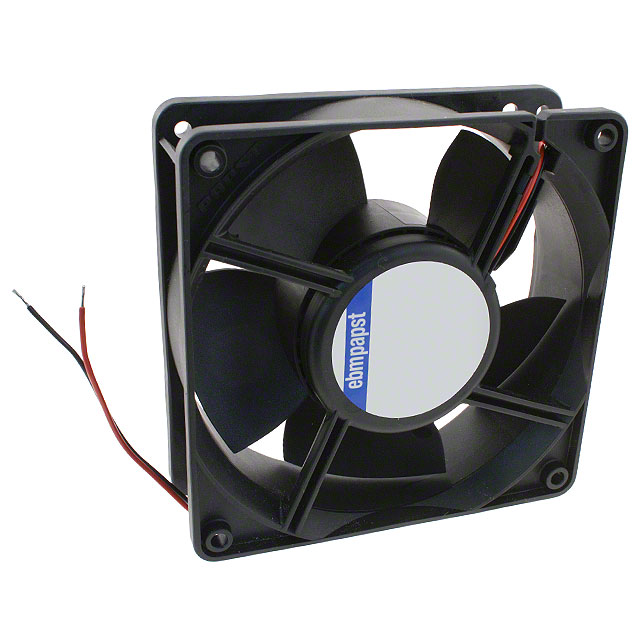

4214GH

Obsolete

ebm-papst Inc.

DC FAN AXIAL SINTEC BEARING 24V 12V TO 28V 108CFM 49DB 119 X 119 X 38MM HIGH SPEED

Search across all available documentation for this part.

Obsolete

ebm-papst Inc.

DC FAN AXIAL SINTEC BEARING 24V 12V TO 28V 108CFM 49DB 119 X 119 X 38MM HIGH SPEED

Technical Specifications

Parameters and characteristics for this part

Specification	4214GH

Air Flow	108 CFM
Air Flow	3.02 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Sintec
Fan Type	Tubeaxial
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	49 dB
Power (Watts)	5.3 W
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	12 VDC
Weight	285.76 g
Weight	0.63 lb
Width [y]	38 mm

Part	Fan Type	Size / Dimension [y]	Size / Dimension [x]	Air Flow	Air Flow	Material - Blade	Power (Watts)	Width [y]	Voltage - Rated	Weight	Weight	Noise	Bearing Type	Termination	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Approval Agency
ebm-papst Inc. 4214GH	Tubeaxial	119 mm	119 mm	108 CFM	3.02 m³/min	Fiberglass Reinforced Nylon Polyamide (PA)	5.3 W	38 mm	24 VDC	285.76 g	0.63 lb	49 dB	Sintec	2 Wire Leads	12 VDC	28 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	CE CSA UL VDE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	3	$ 31.13

General part information

Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Sintec 108.0 CFM (3.02m³/min) 2 Wire Leads
