C6357A.41.10

Active

Prysmian Group

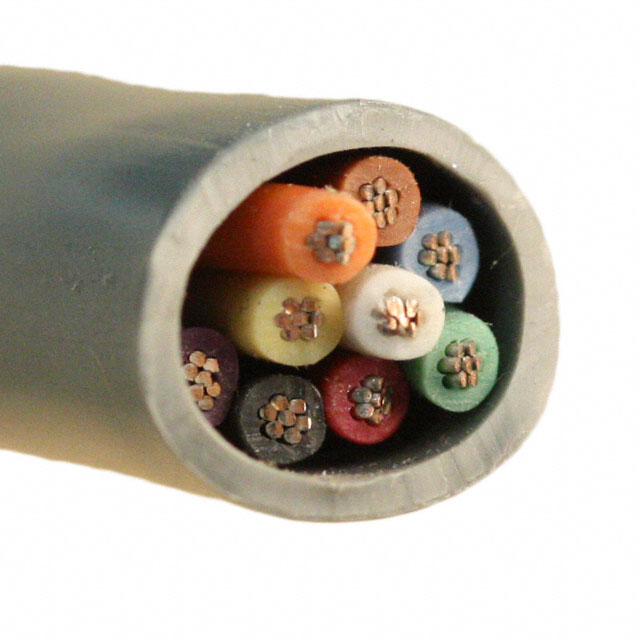

CABLE 9COND 20AWG GRAY

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 9COND 20AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	C6357A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	8.05 mm
Jacket (Insulation) Diameter [diameter]	0.317 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	9
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	20 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Cable Type	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Voltage	Usage	Number of Conductors	Length [x]	Length [x]	Jacket Color	Wire Gauge	Conductor Material
Prysmian Group C6357A.41.10	8.05 mm	0.317 in	1000 ft	304.8 m	Multi-Conductor	Poly-Vinyl Chloride (PVC)	28	7	-20 C	80 C	Poly-Vinyl Chloride (PVC)	300 V	Communication Control	9	30.5 m	100 ft	Gray	20 AWG	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Conductor Multi-Conductor Cable Gray 20 AWG 1000.0' (304.8m)
