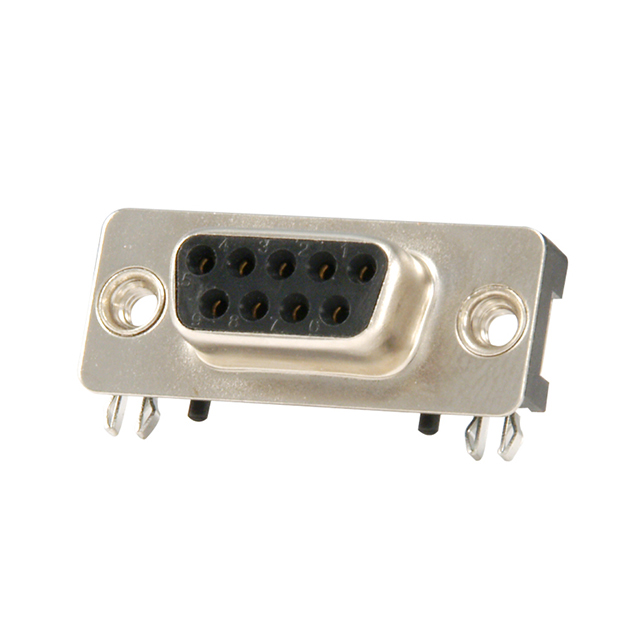

K202XHT-E9S-N30

Active

Kycon, Inc.

CONN D-SUB RCPT 9P SMD R/A SLDR

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN D-SUB RCPT 9P SMD R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	K202XHT-E9S-N30

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Thermoplastic
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	30 VDC

Part	Material Flammability Rating	Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Contact Type	Shell Material, Finish	Current Rating (Amps)	Contact Material	Connector Type	Mounting Type	Voltage Rating	Flange Feature	Contact Finish	Dielectric Material	Connector Style
Kycon, Inc. K202XHT-E9S-N30	UL94 V-0	Black	105 ░C	-55 °C	9	DE E	1	Solder	0.76 Ám	30 Áin	2	Signal	Nickel Plated Steel	2 A	Phosphor Bronze	Receptacle Female Sockets	Surface Mount Right Angle	30 VDC	Housing/Shell (4-40)	Gold	Thermoplastic	D-Sub

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	3150	$ 3.10
