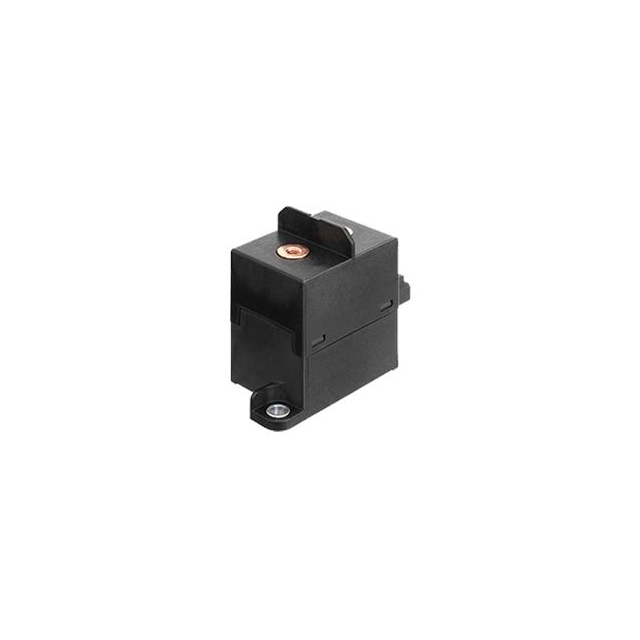

AEVA1251
ActivePanasonic Electric Works
DC CONTACTOR 500V 250A
Deep-Dive with AI
Search across all available documentation for this part.
AEVA1251
ActivePanasonic Electric Works
DC CONTACTOR 500V 250A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AEVA1251 |
|---|---|
| Coil Current | 500 mA |
| Coil Power | 6 W |
| Coil Resistance | 24 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Copper Alloy |
| Contact Rating (Current) | 250 A |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 50 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 30 ms |
| Switching Voltage | 500 VDC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 110.53 | |
| 20 | $ 104.39 | |||
| 40 | $ 92.11 | |||
| 80 | $ 85.97 | |||
Description
General part information
AEVA12 Series
DC CONTACTOR 500V 250A
