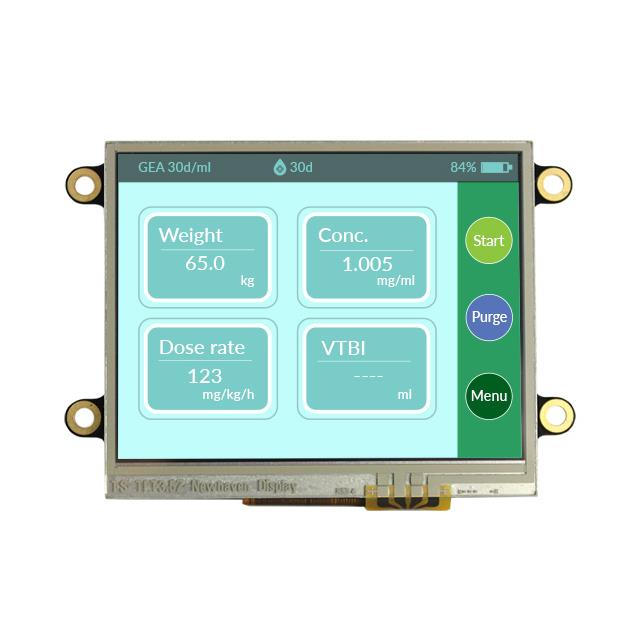

NHD-3.5-320240FT-CTXL-T

Obsolete

Newhaven Display Intl

LCD DISPLAY TFT 3.5" 320X240

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NHD-3.5-320240FT-CTXL-T

Obsolete

Newhaven Display Intl

LCD DISPLAY TFT 3.5" 320X240

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-3.5-320240FT-CTXL-T

Backlight	LED - White
Controller Type	FT812
Display Mode	Transmissive
Display Type	TFT - Color
Dot Pixels	QVGA
Dot Pixels [x]	320 pixels
Dot Pixels [y]	240 pixels
Graphics Color	Green, Red, Blue
Interface	SPI
Touchscreen	Resistive
Viewing Area [x]	71.82 mm
Viewing Area [y]	55.05 mm

NHD-3.5 Series

Part	Dot Pixels	Dot Pixels [x]	Dot Pixels [y]	Viewing Area [y]	Viewing Area [z]	Graphics Color	Dot Size [x]	Dot Size [y]	Interface	Dot Pitch [y]	Dot Pitch [x]	Display Type	Display Mode	Touchscreen	Backlight	Type	Utilized IC / Part	Supplied Contents	Function	Contents	Secondary Attributes	Viewing Area [x]	Interface	Controller Type
Newhaven Display Intl NHD-3.5-320240YF-ATXL#-T	QVGA	320 pixels	240 pixels	72.1 mm	54.6 mm	Blue Green Red	0.07 mm	0.21 mm	Parallel/Serial	0.22 mm	0.22 mm	TFT - Color	Transmissive	Resistive	LED - White
Newhaven Display Intl NHD-3.5-320240MF-ATXL-CTPAL												TFT - Color			Without Backlight
Newhaven Display Intl NHD-3.5-320240MF-VIDEO BOARD V1.1																Display	TW8817	Board(s) Cable(s)	LCD Controller	Board(s) Cable(s)	NTSC PAL
Newhaven Display Intl NHD-3.5-320240MF-ASXN#-T		320 pixels	240 pixels	55.05 mm		Blue Green Red			Parallel			TFT - Color	Transmissive	Resistive	LED - White							71.82 mm	24 Bit
Newhaven Display Intl NHD-3.5-320240MF-ESXN#												TFT - Color			Without Backlight
Newhaven Display Intl NHD-3.5-320240MF-ATXL#-3												TFT - Color			Without Backlight
Newhaven Display Intl NHD-3.5-320240JF-ASXP-T	QVGA	320 pixels	240 pixels	55.05 mm		Blue Green Red			Parallel			TFT - Color	Transmissive	Resistive	LED - White							71.82 mm	24 Bit	ST7272A
Newhaven Display Intl NHD-3.5-320240MB-ASXV-CTP		320 pixels	240 pixels	52.56 mm		Blue Green Red			Parallel			TFT - Color	Transmissive	Capacitive	LED - White							70.08 mm	24 Bit
Newhaven Display Intl NHD-3.5-320240JF-ASXP	QVGA	320 pixels	240 pixels	52.56 mm		Blue Green Red			Parallel			TFT - Color	Transmissive		LED - White							70.08 mm	24 Bit	ST7272A
Newhaven Display Intl NHD-3.5-320240FT-CTXL-T	QVGA	320 pixels	240 pixels	55.05 mm		Blue Green Red			SPI			TFT - Color	Transmissive	Resistive	LED - White							71.82 mm		FT812

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

NHD-3.5 Series

Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color SPI 3.5" (88.90mm) 320 x 240 (QVGA)
