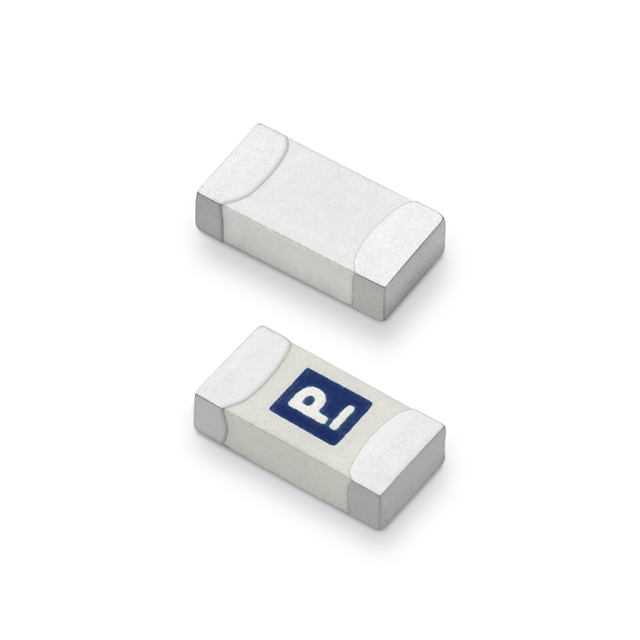

040705.5WRA

Active

Littelfuse/Commercial Vehicle Products

ELECTRIC FUSE, 5.5A, 24VDC, 50A (IR), SURFACE MOUNT, 1206,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

040705.5WRA

Active

Littelfuse/Commercial Vehicle Products

ELECTRIC FUSE, 5.5A, 24VDC, 50A (IR), SURFACE MOUNT, 1206,

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	040705.5WRA

Breaking Capacity @ Rated Voltage	50 A
Current Rating (Amps)	5.5 Amps
DC Cold Resistance	0.014 Ohms
Fuse Type	Board Mount
Melting I²t	8.55
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric)
Response Time	Slow Blow
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	1.63 mm
Size / Dimension [y]	0.064 in
Voltage Rating - AC	24 V
Voltage Rating - DC	24 V

040705.5A Series

FUSE 24V HIGH I2T AUTOC 1206 TL 5.5A

Part	Current Rating (Amps)	Mounting Type	Package / Case	Breaking Capacity @ Rated Voltage	Response Time	Fuse Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	DC Cold Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Voltage Rating - AC	Melting I²t
Littelfuse/Commercial Vehicle Products 040705.5WRA	5.5 Amps	Surface Mount	1206 (3216 Metric)	50 A	Slow Blow	Board Mount	3.2 mm	1.63 mm	0.126 in	0.064 in	0.014 Ohms	-55 °C	150 °C	24 V	24 V	8.55

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.73
		5	$ 0.60
		10	$ 0.56
		50	$ 0.46
		100	$ 0.43
		250	$ 0.38
		500	$ 0.35
		1000	$ 0.33
	Digi-Reel®	1	$ 0.72
		5	$ 0.60
		10	$ 0.56
		50	$ 0.46
		100	$ 0.43
		250	$ 0.38
		500	$ 0.36
		1000	$ 0.33
	Tape & Reel (TR)	3000	$ 0.29
		6000	$ 0.27
Newark	Each	2500	$ 0.30

Description

General part information

040705.5A Series

407A Series AECQ-Compliant fuse is specifically tested to cater to secondary circuit protection needs of compact auto electronics applications. The general design ensures excellent temperature stability and performance reliability. This high I²t fuse series is designed to have ultra high inrush current withstand capability to avoid nuisance fuse open.
