A09ZR09ZR28H51B

Active

JST Sales America Inc.

JUMPER 09ZR-8M-P - 09ZR-8M-P 2"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 09ZR-8M-P - 09ZR-8M-P 2"

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Pitch - Connector	Pitch - Connector	Cable Termination	Length	Length	Length	Number of Positions	Color	Contact Finish	Number of Rows	Length
JST Sales America Inc. A09ZR09ZR28H254A	Socket to Socket Reversed	0.059 "	1.5 mm	IDC	10 in	0.833 ft	254 mm	9	Gray Individual	Tin	1
JST Sales America Inc. A09ZR09ZR28H51B	Socket to Socket	0.059 "	1.5 mm	IDC	2 "	0.167 '	50.8 mm	9	Gray Individual	Tin	1
JST Sales America Inc. A09ZR09ZR28H51A	Socket to Socket Reversed	0.059 "	1.5 mm	IDC	2 "	0.167 '	50.8 mm	9	Gray Individual	Tin	1
JST Sales America Inc. A09ZR09ZR28H305A	Socket to Socket Reversed	0.059 "	1.5 mm	IDC		1 ft	304.8 mm	9	Gray Individual	Tin	1
JST Sales America Inc. A09ZR09ZR28H254B	Socket to Socket	0.059 "	1.5 mm	IDC	10 in	0.833 ft	254 mm	9	Gray Individual	Tin	1
JST Sales America Inc. A09ZR09ZR28H305B	Socket to Socket	0.059 "	1.5 mm	IDC		1 ft	304.8 mm	9	Gray Individual	Tin	1
JST Sales America Inc. A09ZR09ZR28H152B	Socket to Socket	0.059 "	1.5 mm	IDC	6 "		152.4 mm	9	Gray Individual	Tin	1	0.5 '
JST Sales America Inc. A09ZR09ZR28H203A	Socket to Socket Reversed	0.059 "	1.5 mm	IDC	8 in	0.667 ft	203.2 mm	9	Gray Individual	Tin	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

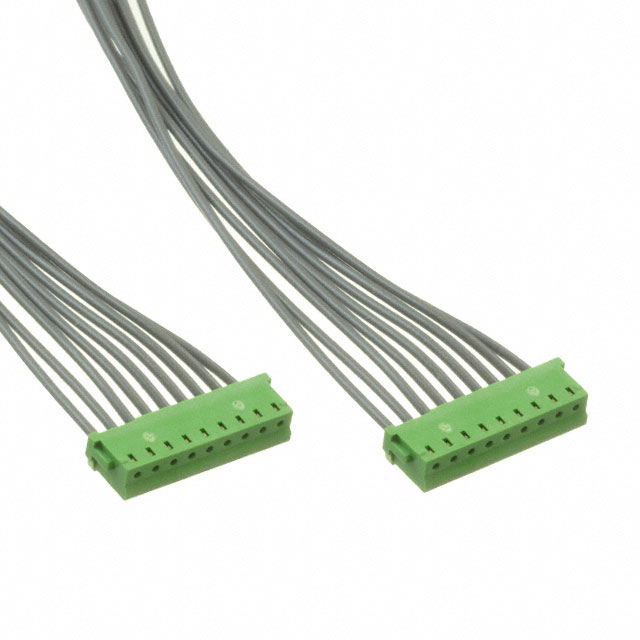

9 Position Cable Assembly Rectangular Socket to Socket 0.167' (50.80mm, 2.00")
