M50-3551342
ActiveHarwin Inc.

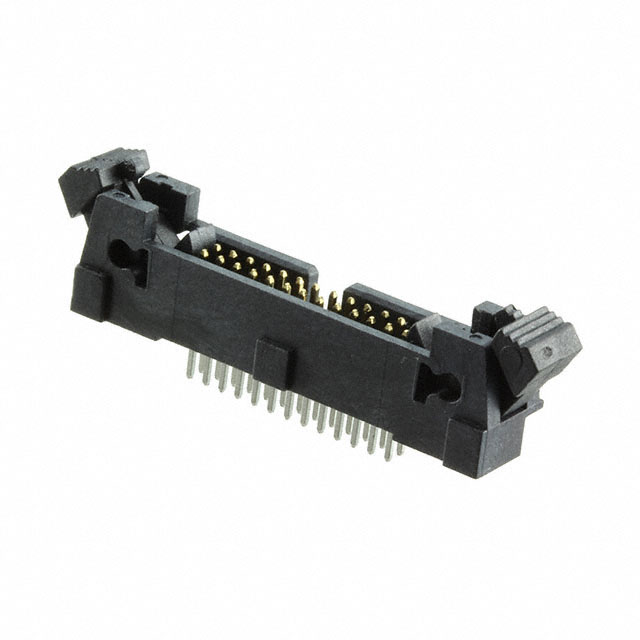

WIRE-TO-BOARD CONNECTOR, EJECTOR, M50 SERIES, THROUGH HOLE, HEADER, 26, 1.27 MM ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M50-3551342
ActiveHarwin Inc.
WIRE-TO-BOARD CONNECTOR, EJECTOR, M50 SERIES, THROUGH HOLE, HEADER, 26, 1.27 MM ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M50-3551342 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Length - Mating | 3.05 mm |
| Contact Length - Mating | 0.12 in |
| Contact Length - Post | 0.107 " |
| Contact Length - Post | 2.71 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 1.75 A |
| Fastening Type | Latch Lock/Eject Hooks |
| Features | Keying Slot |
| Insulation Color | Black |
| Insulation Height | 8.25 mm |
| Insulation Height | 0.325 in |
| Mated Stacking Heights | 11.6 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length | 8.92 mm |
| Overall Contact Length | 0.351 in |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
M50-355 Series
| Part | Contact Type | Contact Length - Mating | Contact Length - Mating | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Mated Stacking Heights | Insulation Height | Insulation Height | Row Spacing - Mating | Row Spacing - Mating | Contact Finish - Mating | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Overall Contact Length | Overall Contact Length | Fastening Type | Contact Finish Thickness - Mating | Mounting Type | Features | Termination | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Rows | Material Flammability Rating | Contact Shape | Contact Material | Contact Finish - Post | Style | Shrouding | Insulation Color | Contact Length - Post | Contact Length - Post | Connector Type | Current Rating (Amps) | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Male Pin | 3.05 mm | 0.12 in | All | 0.05 in | 1.27 mm | 11.6 mm | 8.25 mm | 0.325 in | 0.05 in | 1.27 mm | Gold | 20 | -55 °C | 125 °C | 8.92 mm | 0.351 in | Latch Lock/Eject Hooks | Flash | Through Hole | Keying Slot | Solder | 2.54 µm | 100 µin | 2 | UL94 V-0 | Square | Brass | Tin | Board to Board Cable | Shrouded - 4 Wall | Black | 0.107 " | 2.71 mm | Header | 1.75 A | |||
Harwin Inc. | Male Pin | 3.05 mm | 0.12 in | All | 0.05 in | 1.27 mm | 11.6 mm | 8.25 mm | 0.325 in | 0.05 in | 1.27 mm | Gold | 26 | -55 °C | 125 °C | 8.92 mm | 0.351 in | Latch Lock/Eject Hooks | Flash | Through Hole | Keying Slot | Solder | 2.54 µm | 100 µin | 2 | UL94 V-0 | Square | Brass | Tin | Board to Board Cable | Shrouded - 4 Wall | Black | 0.107 " | 2.71 mm | Header | 1.75 A | |||
Harwin Inc. | Male Pin | 3.05 mm | 0.12 in | All | 0.05 in | 1.27 mm | 11.6 mm | 8.25 mm | 0.325 in | 0.05 in | 1.27 mm | Gold | -55 °C | 125 °C | 8.92 mm | 0.351 in | Latch Lock/Eject Hooks | Through Hole | Keying Slot | Solder | 2.54 µm | 100 µin | 2 | UL94 V-0 | Square | Brass | Tin | Board to Board Cable | Shrouded - 4 Wall | Black | 0.107 " | 2.71 mm | Header | 1.75 A | 16 | 15 µin | 0.38 µm | ||
Harwin Inc. | Male Pin | 3.05 mm | 0.12 in | All | 0.05 in | 1.27 mm | 11.6 mm | 8.25 mm | 0.325 in | 0.05 in | 1.27 mm | Gold | 40 | -55 °C | 125 °C | 8.92 mm | 0.351 in | Latch Lock/Eject Hooks | Flash | Through Hole | Keying Slot | Solder | 2.54 µm | 100 µin | 2 | UL94 V-0 | Square | Brass | Tin | Board to Board Cable | Shrouded - 4 Wall | Black | 0.107 " | 2.71 mm | Header | 1.75 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M50-355 Series
Connector Header Through Hole 26 position 0.050" (1.27mm)
