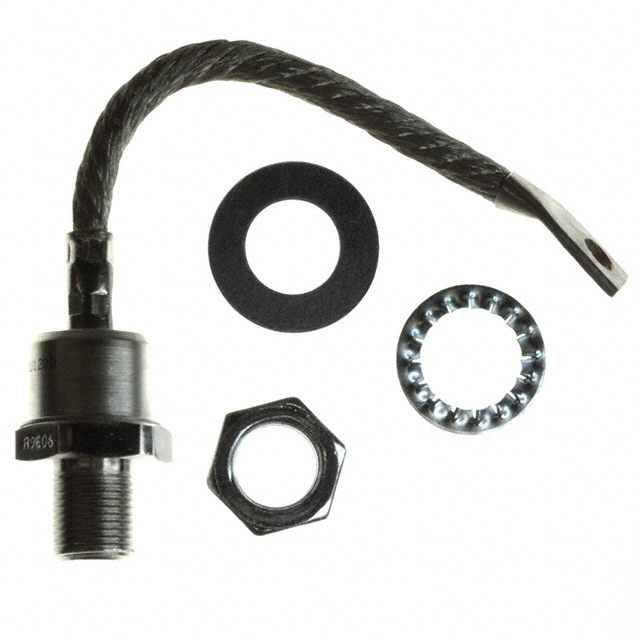

1N2059

Obsolete

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 300V 250A DO205AB

Search across all available documentation for this part.

Obsolete

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 300V 250A DO205AB

Technical Specifications

Parameters and characteristics for this part

Specification	1N2059

Current - Average Rectified (Io)	250 A
Current - Reverse Leakage @ Vr	17 mA
Mounting Type	Stud Mount
Operating Temperature - Junction [Max]	200 C
Operating Temperature - Junction [Min]	-65 C
Package / Case	DO-205AB, DO-9, Stud
Speed	Standard Recovery >500ns
Speed	200 mA
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	300 V
Voltage - Forward (Vf) (Max) @ If	1.25 V

Part	Technology	Package / Case	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Speed	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)
Vishay General Semiconductor - Diodes Division 1N2059	Standard	DO-205AB DO-9 Stud	17 mA	300 V	200 C	-65 C	Standard Recovery >500ns	200 mA	Stud Mount	1.25 V	250 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 137.64

General part information

Diode 300 V 250A Stud Mount DO-205AB (DO-9)
