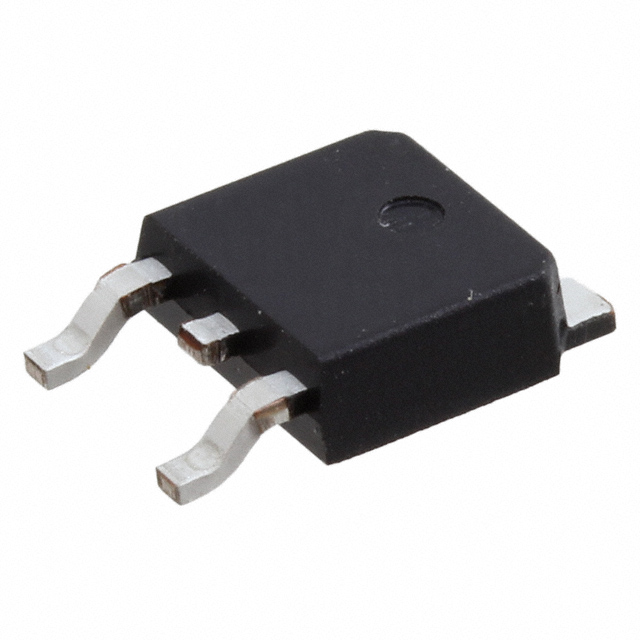

LQA20N150C

Active

Power Integrations

RECTIFIER DIODE, 1 PHASE, 2 ELEMENT, 10A, 150V V(RRM), SILICON, TO-252, DPAK-3/2

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

LQA20N150C

Active

Power Integrations

RECTIFIER DIODE, 1 PHASE, 2 ELEMENT, 10A, 150V V(RRM), SILICON, TO-252, DPAK-3/2

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LQA20N150C

Current - Average Rectified (Io) (per Diode)	10 A
Current - Reverse Leakage @ Vr	500 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Reverse Recovery Time (trr)	16.3 ns
Speed	200 mA, 500 ns
Supplier Device Package	TO-252 (DPAK)
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.15 V

LQA20 Series

Part	Package / Case	Voltage - Forward (Vf) (Max) @ If	Diode Configuration	Mounting Type	Speed	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io) (per Diode)	Supplier Device Package	Current - Reverse Leakage @ Vr	Reverse Recovery Time (trr)	Operating Temperature - Junction	Voltage - DC Reverse (Vr) (Max) [Max]
Power Integrations LQA20N150C	DPAK (2 Leads + Tab) SC-63 TO-252-3	1.15 V	1 Pair Common Cathode	Surface Mount	200 mA 500 ns	Standard	150 °C	-55 °C	10 A	TO-252 (DPAK)	500 µA	16.3 ns
Power Integrations LQA20T300C	TO-220-3	1.9 V	1 Pair Common Cathode	Through Hole	200 mA 500 ns	Schottky			10 A	TO-220AB	25 µA	12.6 ns	150 °C	300 V
Power Integrations LQA20T150C	TO-220-3	1.15 V	1 Pair Common Cathode	Through Hole	200 mA 500 ns	Standard	150 °C	-55 °C	10 A	TO-220AB	500 µA	16.3 ns
Power Integrations LQA20B300C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	1.9 V	1 Pair Common Cathode	Surface Mount	200 mA 500 ns	Standard			10 A		25 µA	12.6 ns	150 °C	300 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 0.85
		12500	$ 0.76
Newark	Each (Supplied on Cut Tape)	1	$ 1.64

Description

General part information

LQA20 Series

Qspeed™ family 150V, 20A common cathode diode has the lowest QRR of any 150V silicon diode. Its recovery characteristics increase efficiency, reduce EMI and eliminate snubbers. Typical applications include AC/DC and DC/DC output rectification, output and freewheeling diodes, motor drive circuit and DC-AC inverters.
