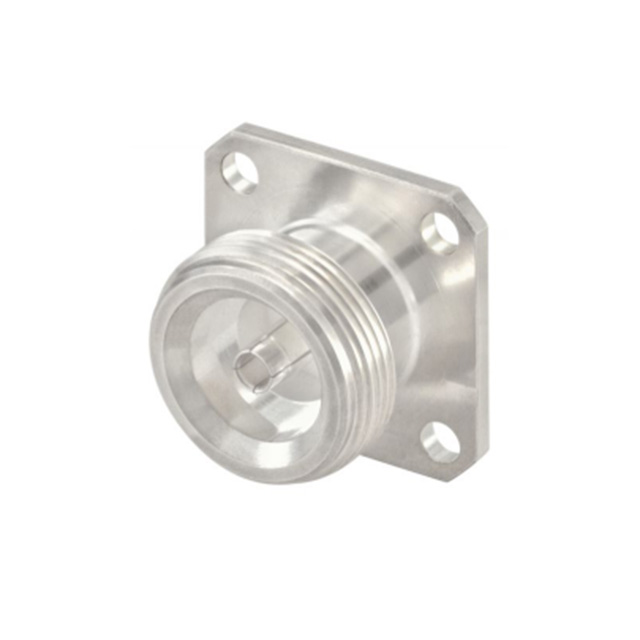

65K401-500N1

Obsolete

Rosenberger

CONN 4.1/9.5 JCK STR 50OHM SLD

Search across all available documentation for this part.

Obsolete

Rosenberger

CONN 4.1/9.5 JCK STR 50OHM SLD

Technical Specifications

Parameters and characteristics for this part

Specification	65K401-500N1

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Silver
Connector Style [Max]	9.5
Connector Style [Min]	4.1
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	8.3 GHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	2700 V

Part	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Dielectric Material	Ingress Protection	Housing Color	Connector Style [Min]	Connector Style [Max]	Voltage Rating	Mounting Feature	Body Material	Frequency - Max [Max]	Shield Termination	Contact Termination	Body Finish	Impedance	Connector Type	Number of Ports	Mating Cycles
Rosenberger 65K401-500N1	Bronze	85 °C	-55 °C	Silver	Polytetrafluoroethylene (PTFE)	IP67 - Dust Tight Waterproof	Silver	4.1	9.5	2700 V	Flange	Brass	8.3 GHz	Solder	Solder	White Bronze	50 Ohms	Female Socket Jack	1	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4.1/9.5 Connector Jack, Female Socket 50 Ohms Panel Mount Solder
