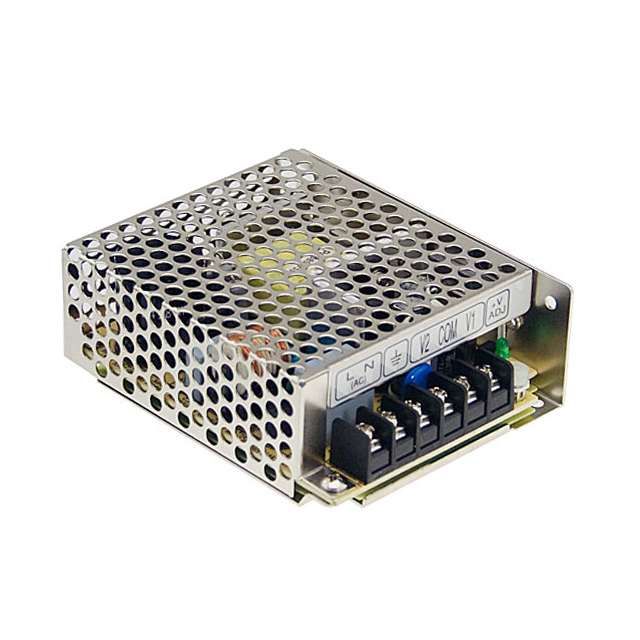

RS-35-24

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 24V 36W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 24V 36W

Technical Specifications

Parameters and characteristics for this part

Specification	RS-35-24

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	1.5 A
Efficiency	88 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	36 W
Size / Dimension [x]	99 mm
Size / Dimension [x]	3.9 "
Size / Dimension [y]	3.23 "
Size / Dimension [y]	82 mm
Size / Dimension [z]	36 mm
Size / Dimension [z]	1.42 in
Type	Enclosed
Voltage - Input [Max]	264 VAC, 373 VDC
Voltage - Input [Min]	88 VAC, 125 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Power (Watts)	Applications	Number of Outputs	Efficiency	Type	Operating Temperature [Min]	Operating Temperature [Max]	Minimum Load Required	Approval Agency	Voltage - Isolation	Current - Output 1	Features
MEAN WELL USA Inc. RS-35-24	24 V	88 VAC 125 VDC	264 VAC 373 VDC	Chassis Mount	3.23 "	82 mm	99 mm	3.9 "	36 mm	1.42 in	36 W	ITE (Commercial)	1	88 %	Enclosed	-25 °C	70 °C		CB CE cURus TUV	3000 V	1.5 A	Adjustable Output Universal Input
MEAN WELL USA Inc. RS-35-3.3	3.3 V	88 VAC 125 VDC	264 VAC 373 VDC	Chassis Mount	3.23 "	82 mm	99 mm	3.9 "	36 mm	1.42 in	23 W	ITE (Commercial)	1	76.5 %	Enclosed	-25 °C	70 °C		CB CE cURus TUV	3000 V	7 A	Adjustable Output Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 24V 88 ~ 264 VAC, 125 ~ 373 VDC Input
