FI4D012A9

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FI4D012A9

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	50 µm
Features	12
Features	Armored
Jacket (Insulation) Diameter [diameter]	0.48 in
Jacket (Insulation) Diameter [diameter]	12.19 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Violet
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Ratings	OFCP
Style	Multiple Fibers
Tensile Strength	20.4 kg
Type	Multimode

Part	Jacket (Insulation) Material	Core Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Type	Cladding Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Style	Features	Features	Tensile Strength	Jacket Color
Belden Inc. FI4D012A9	Poly-Vinyl Chloride (PVC)	50 µm	0.48 in	12.19 mm	Multimode	125 µm	70 °C	0 °C	OFCP	Multiple Fibers	12	Armored	20.4 kg	Violet
Belden Inc. FI4D012R9
Belden Inc. FI4D012A9A	Poly-Vinyl Chloride (PVC)	50 µm	0.48 in	12.19 mm	Multimode	125 µm	70 °C	0 °C	OFCP	Multiple Fibers	12	Armored	20.4 kg	Aqua
Belden Inc. FI4D012R9A	Poly-Vinyl Chloride (PVC)	50 µm	0.26 in	6.6 mm	Multimode	125 µm	70 °C	-20 C	OFNR	Multiple Fibers	12	Rip Cord	20.4 kg	Aqua

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 4.56

General part information

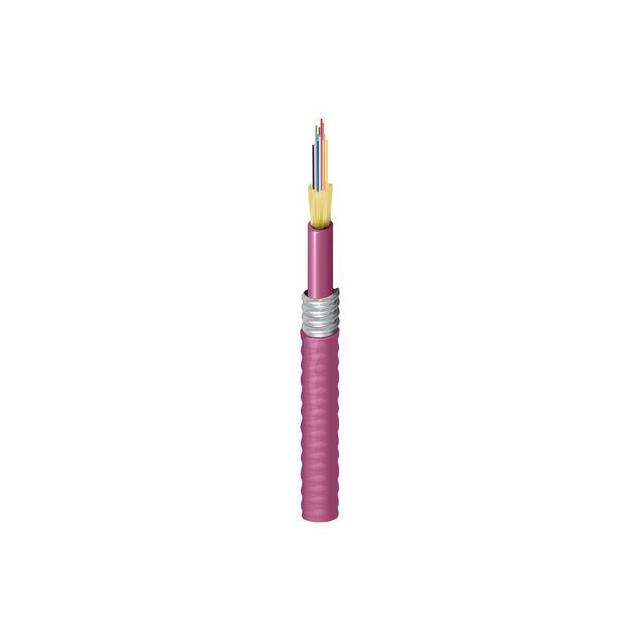

Fiber Optic Cable Violet Multimode 125µm

Technical documentation and resources
