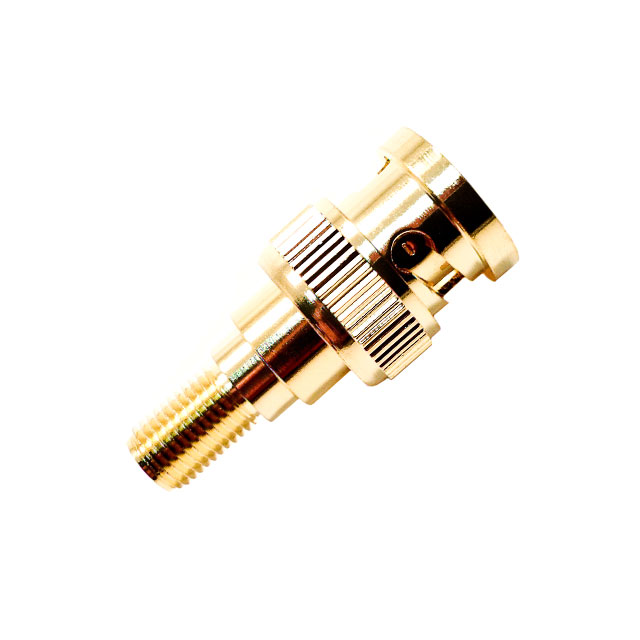

BU-P4289

Active

Mueller Electric Co

CONN ADAPT BNC PLUG TO SMA JACK

Search across all available documentation for this part.

Active

Mueller Electric Co

CONN ADAPT BNC PLUG TO SMA JACK

Technical Specifications

Parameters and characteristics for this part

Specification	BU-P4289

Adapter Series	BNC to SMA
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	BNC Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	12.4 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	170 °C
Operating Temperature [Min]	-50 °C
Style	Straight

Part	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Body Material	Style	Conversion Type	Convert To (Adapter End)	Convert From (Adapter End)	Adapter Series	Adapter Type	Center Contact Material	Mounting Type	Body Finish	Frequency - Max [Max]	Fastening Type	Dielectric Material
Mueller Electric Co BU-P4289	Gold	-50 °C	170 °C	50 Ohms	Brass	Straight	Between Series	Female Socket SMA Jack	BNC Plug Male Pin	BNC to SMA	Plug to Jack	Beryllium Copper	Free Hanging (In-Line)	Gold	12.4 GHz	Bayonet Lock Threaded	Polytetrafluoroethylene (PTFE)
Mueller Electric Co BU-P4290	Gold	-50 °C	170 °C	50 Ohms	Brass	Straight	Between Series	Male Pin SMA Plug	BNC Jack Female Socket	BNC to SMA	Plug to Jack	Beryllium Copper	Free Hanging (In-Line)	Gold	12.4 GHz	Bayonet Lock Threaded	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
