TEA19362T/1J
ActiveFreescale Semiconductor - NXP
IC OFFLINE SWITCH FLYBACK 10SO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TEA19362T/1J
ActiveFreescale Semiconductor - NXP
IC OFFLINE SWITCH FLYBACK 10SO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TEA19362T/1J |
|---|---|
| Fault Protection | Over Temperature, Over Voltage, Over Power |
| Frequency - Switching | 71 kHz |
| Internal Switch(s) | False |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -25 °C |
| Output Isolation | Isolated |

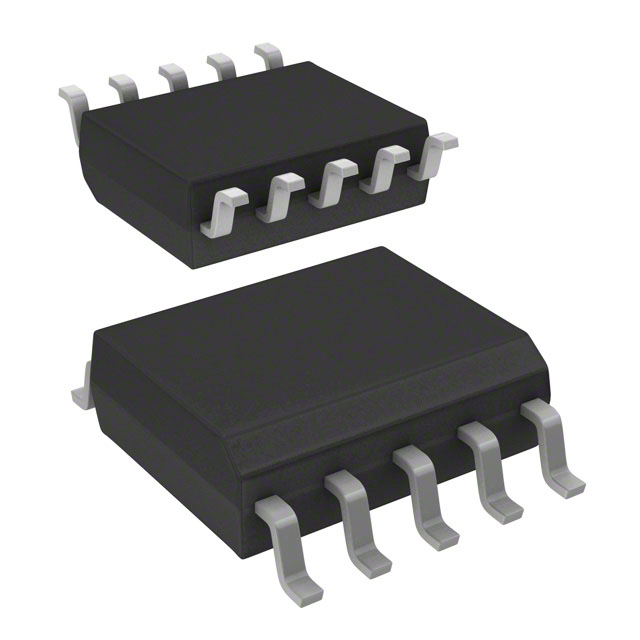

| Package / Case | 10-SOIC |
| Package / Case | 0.154 " |
| Package / Case | 3.9 mm |
| Topology | Flyback |
| Voltage - Start Up | 14.9 V |
| Voltage - Supply (Vcc/Vdd) [Max] | 120 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.56 | |
| 10 | $ 1.40 | |||
| 25 | $ 1.32 | |||
| 100 | $ 1.09 | |||
| 250 | $ 1.02 | |||
| 500 | $ 0.90 | |||
| 1000 | $ 0.71 | |||
| Digi-Reel® | 1 | $ 1.56 | ||
| 10 | $ 1.40 | |||
| 25 | $ 1.32 | |||
| 100 | $ 1.09 | |||
| 250 | $ 1.02 | |||
| 500 | $ 0.90 | |||
| 1000 | $ 0.71 | |||
| Tape & Reel (TR) | 2500 | $ 0.59 | ||
Description
General part information
TEA19362 Series
Converter Offline Flyback Topology 71kHz 10-SO
