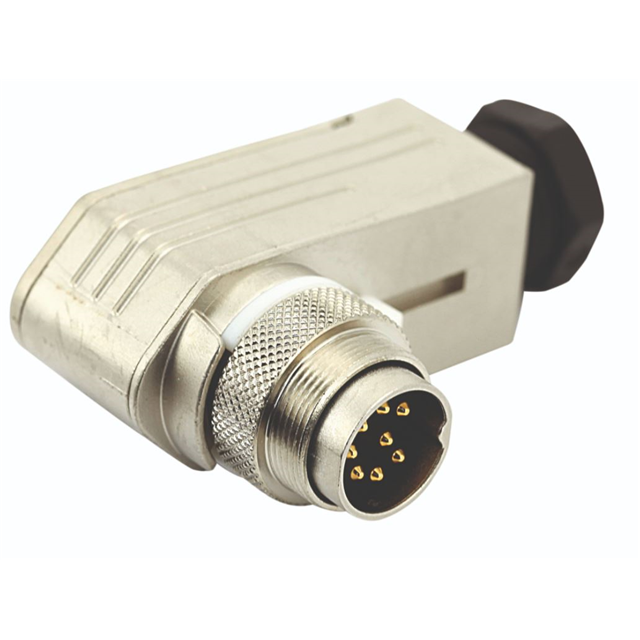

C091 11K006 001 2

Active

Amphenol Tuchel Industrial

CONN PLG HSG MALE 6POS INLINE RA

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLG HSG MALE 6POS INLINE RA

Technical Specifications

Parameters and characteristics for this part

Specification	C091 11K006 001 2

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Features	Coupling Nut, Backshell
Housing Color	Silver
Ingress Protection	IP69K, IP65, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Note	Contacts Not Included
Number of Positions	6
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-6
Shielding	Shielded
Type	For Male Pins

Part	Operating Temperature [Max]	Operating Temperature [Min]	Note	Shielding	Contact Type	Material Flammability Rating	Connector Type	Number of Positions	Shell Finish	Mounting Type	Orientation	Shell Size - Insert	Housing Color	Shell Material	Contact Shape	Features	Type	Contact Size	Ingress Protection	Insert Material
Amphenol Tuchel Industrial C091 11K006 001 2	100 °C	-40 °C	Contacts Not Included	Shielded	Crimp	UL94 V-0	Plug Housing	6	Nickel	Free Hanging (In-Line) Right Angle	Keyed	M16-6	Silver	Die Cast	Circular	Backshell Coupling Nut	For Male Pins	1.5 mm	IP65 IP67 IP69K	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 17.48

General part information

6 Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Backshell, Coupling Nut
