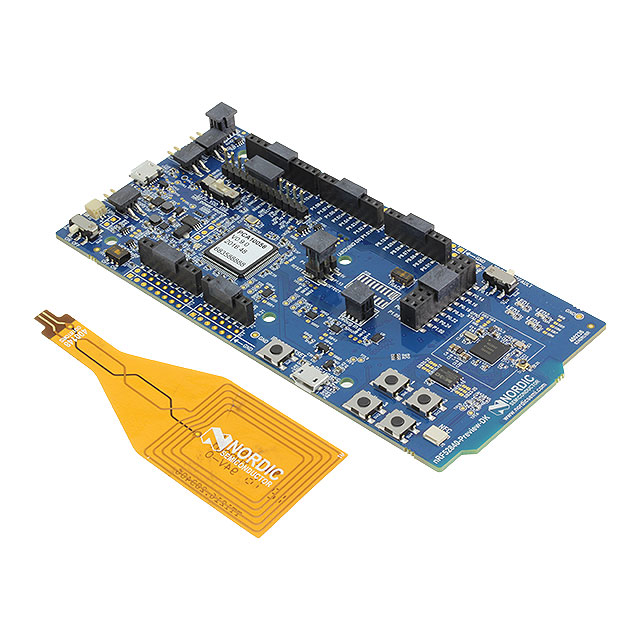

NRF52840-PDK

Unknown

Nordic Semiconductor ASA

EVAL BOARD FOR NRF52840

Search across all available documentation for this part.

Unknown

Nordic Semiconductor ASA

EVAL BOARD FOR NRF52840

Technical Specifications

Parameters and characteristics for this part

Specification	NRF52840-PDK

For Use With/Related Products	nRF52840
Frequency	2.4 GHz
Supplied Contents	Board(s)
Type	ANT, Transceiver, 802.15.4 (Thread, Zigbee®), Bluetooth® 5.x (BLE)

Part	Supplied Contents	Frequency	Type	For Use With/Related Products	Power - Output	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Receiving	RF Family/Standard	Data Rate (Max)	GPIO	Protocol	Package / Case	Current - Transmitting	Memory Size
Nordic Semiconductor ASA NRF52840-PDK	Board(s)	2.4 GHz	802.15.4 (Thread Zigbee®) ANT Bluetooth® 5.x (BLE) Transceiver	nRF52840
Nordic Semiconductor ASA NRF52840-DK	Board(s)	2.4 GHz	802.15.4 (Thread Zigbee®) ANT Bluetooth® 5.x (BLE) Transceiver	nRF52840
Nordic Semiconductor ASA NRF52840-QIAA-R		2.4 GHz	TxRx + MCU		8 dBm	73-QFN (7x7)	5.5 V	1.7 V	85 °C	-40 °C	Surface Mount	6.3 mA	802.15.4 Bluetooth	2 Mbps	48	Bluetooth v5.0	73-VFQFN Dual Rows Exposed Pad	16.4 mA	1 MB 256 kB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

nRF52840 - Transceiver; 802.15.4 (Thread, Zigbee®), ANT, Bluetooth® 5.x (BLE) 2.4GHz Evaluation Board

Technical documentation and resources

No documents available
