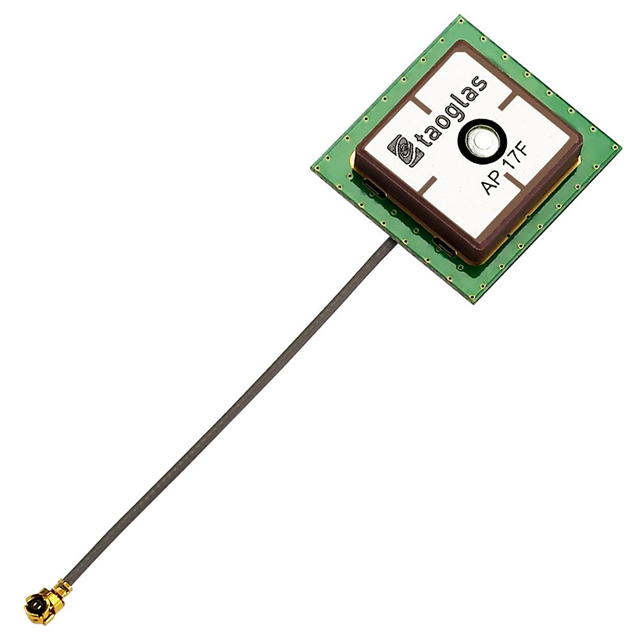

AP.17F.07.0064A
ActiveTAOGLAS
RF ANT 1.575GHZ CER PATCH IPEX
Deep-Dive with AI
Search across all available documentation for this part.
AP.17F.07.0064A
ActiveTAOGLAS
RF ANT 1.575GHZ CER PATCH IPEX
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AP.17F.07.0064A |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | GPS |
| Features | Filter, LNA |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Gain | -1.5 dBi |
| Height (Max) | 4 mm |
| Height (Max) [Max] [z] | 0.157 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination | I-PEX MHF1, U.FL (UMCC) |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 13.44 | |
| 100 | $ 10.92 | |||
| 500 | $ 8.40 | |||
| 1000 | $ 7.64 | |||
Description
General part information
AP.17 Series
RF ANTENNA GPS Ceramic Patch U.FL (UMCC), I-PEX MHF1 Surface Mount
Documents
Technical documentation and resources
No documents available
