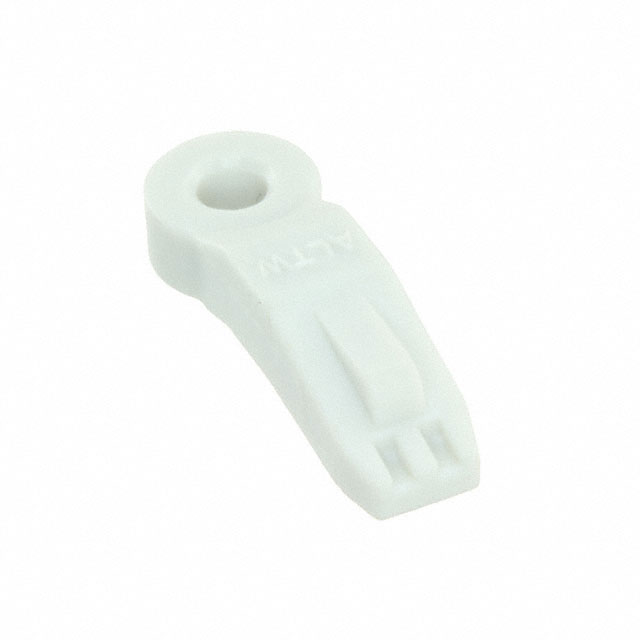

SSL13-D1S00-000001

Obsolete

Amphenol LTW

CONN SSL JUMPER 1POS SOLDER

Search across all available documentation for this part.

Obsolete

Amphenol LTW

CONN SSL JUMPER 1POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	SSL13-D1S00-000001

Connector Type	Jumper
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Features	Board Guide
Housing Color	White
Housing Material	Polybutylene Terephthalate (PBT)
Mating Cycles	10
Mounting Type	Surface Mount, Right Angle
Number of Positions	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Termination	Solder
Voltage Rating	500 V

Part	Contact Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Housing Material	Mating Cycles	Mounting Type	Contact Finish	Features	Housing Color	Current Rating (Amps)	Termination	Voltage Rating
Amphenol LTW SSL13-D1S00-000001	Copper Alloy	Jumper	-40 °C	105 ░C	1	Polybutylene Terephthalate (PBT)	10	Surface Mount Right Angle	Gold	Board Guide	White	5 A	Solder	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SSL Connector 1 Position Jumper Board to Board Solder
