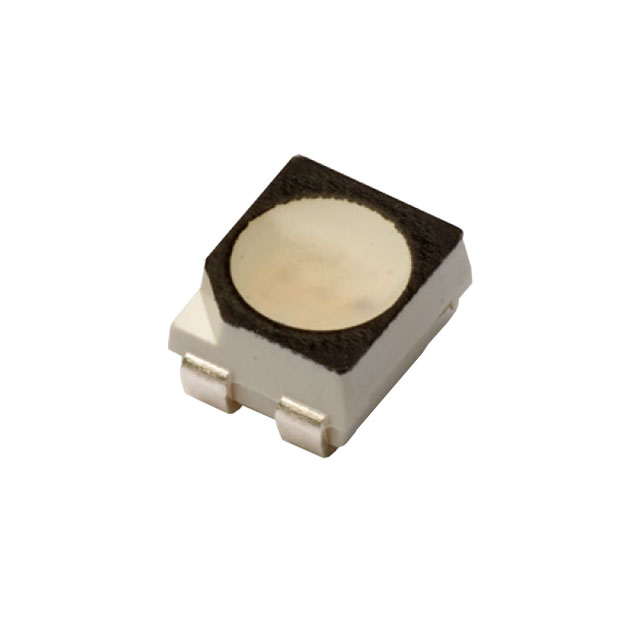

ASMB-MTB1-0A3A2
ObsoleteBroadcom Limited
LED RGB DIFFUSED 4PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
ASMB-MTB1-0A3A2
ObsoleteBroadcom Limited
LED RGB DIFFUSED 4PLCC SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASMB-MTB1-0A3A2 |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Height (Max) [Max] | 1.9 mm |
| Lens Color | White |
| Lens Size [diameter] | 2.4 mm |
| Lens Transparency | Diffused |
| Millicandela Rating [custom] | 350 mcd |
| Millicandela Rating [custom] | 1600 mcd |
| Millicandela Rating [custom] | 540 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-PLCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 4-PLCC |
| Viewing Angle | 115 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 2.1 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3.1 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3.1 V |
| Wavelength - Dominant | 530 nm, 625 nm, 470 nm |
| Wavelength - Peak [custom] | 522 nm |
| Wavelength - Peak [custom] | 634 nm |
| Wavelength - Peak [custom] | 465 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ASMB-MTB1 Series
Red, Green, Blue (RGB) 625nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 2.1V Red, 3.1V Green, 3.1V Blue 4-PLCC
