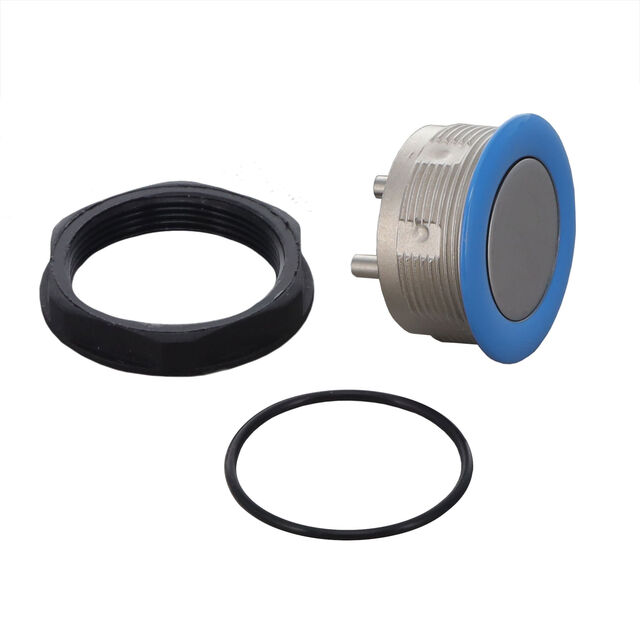

1241.2874.4

Active

SCHURTER Inc.

CUSTOM SWITCH

Search across all available documentation for this part.

Active

SCHURTER Inc.

CUSTOM SWITCH

Technical Specifications

Parameters and characteristics for this part

Specification	1241.2874.4

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Current Rating (Amps)	80 mA
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Anti-Vandal

Part	Switch Function	Ingress Protection	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Mounting Type	Actuator Marking	Panel Cutout Dimensions [diameter]	Circuit	Type	Mechanical Life	Current Rating (Amps)
SCHURTER Inc. 1241.2874.4	Off-Mom	IP67 - Dust Tight Waterproof	Button Flush Round	-20 C	60 °C	PC Pin	Panel Mount Front	No Marking	19 mm	SPST-NO	Anti-Vandal	1000000 Cycles	80 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Anti-Vandal Panel Mount, Front
