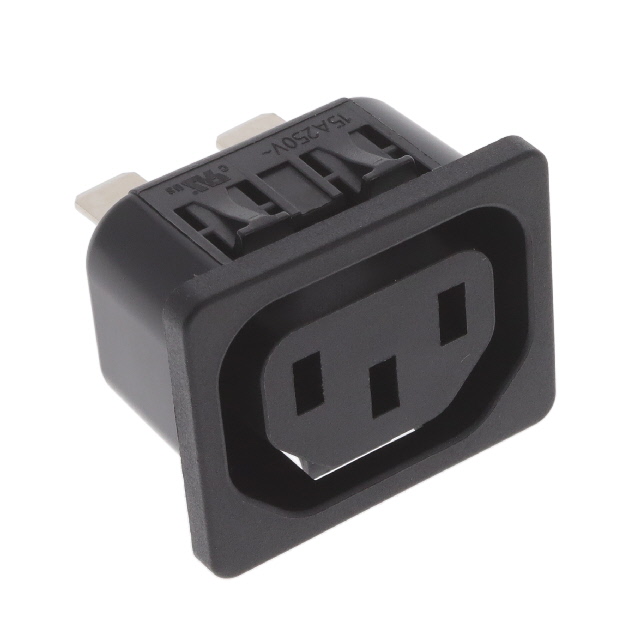

6600.4325.21

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-2-2F PNL QC

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-2-2F PNL QC

Technical Specifications

Parameters and characteristics for this part

Specification	6600.4325.21

Accomodates a Fuse	False
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-2-2/F
Connector Type	Receptacle, Female Sockets
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Ingress Protection	IP30
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	32.5 mm
Panel Cutout Dimensions [y]	24.8 mm
Panel Thickness [x]	2.5 mm
Panel Thickness [x]	0.098 in
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Current Rating - Appliance Inlet	Termination	Termination	Termination	Ingress Protection	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type	Approval Agency	Filter Type	Panel Thickness [x]	Panel Thickness [x]	Voltage Rating - Appliance Inlet	Connector Style	Material Flammability Rating	Connector Type	Accomodates a Fuse
SCHURTER Inc. 6600.4325.21	10 A	0.25 in	6.3 mm	Quick Connect	IP30	32.5 mm	24.8 mm	Panel Mount Snap-In	CCC cULus ENEC	Unfiltered - Commercial	2.5 mm	0.098 in	250 VAC	IEC 320-2-2/F	UL94 V-0	Receptacle Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Female Sockets IEC 320-2-2/F Panel Mount, Snap-In
