341-008-500-107

Active

EDAC Inc.

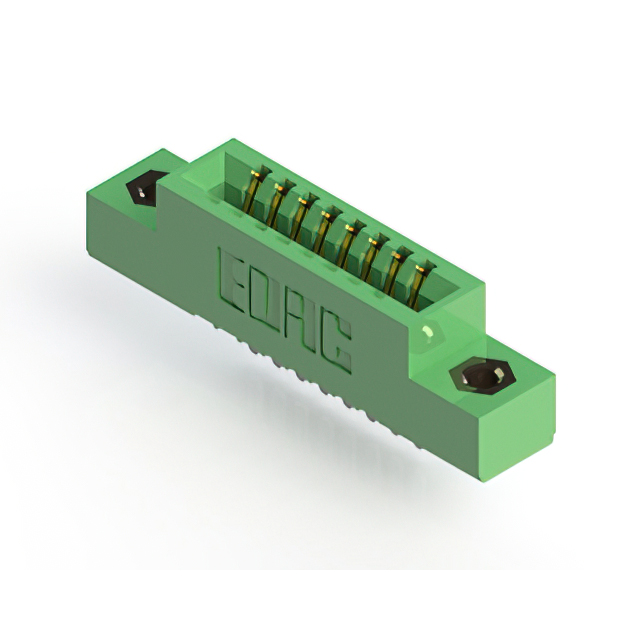

CARD EDGE CONNECTOR, 8 CONTACT(S), 1 ROW(S), FEMALE, 0.1 INCH PITCH, WIRE WRAP TERMINAL, M3, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

341-008-500-107

Active

EDAC Inc.

CARD EDGE CONNECTOR, 8 CONTACT(S), 1 ROW(S), FEMALE, 0.1 INCH PITCH, WIRE WRAP TERMINAL, M3, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-008-500-107

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	8
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder Eyelet(s)
Termination Rows	1

341-008 Series

Part	Read Out	Card Type	Termination	Color	Number of Positions	Mounting Type	Contact Material	Contact Finish	Material - Insulation	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Number of Rows	Gender	Termination Rows	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 341-008-522-101	Single	Non Specified - Single Edge	Solder	Green	8	Through Hole	Copper Alloy	Gold	Polyester Thermoplastic	8	8	8	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	10 Áin	0.25 Ám	Semi Bellows	1	Female	1	-40 °C	105 ░C
EDAC Inc. 341-008-520-107	Single	Non Specified - Single Edge	Solder	Green	8	Through Hole	Copper Alloy	Gold	Polyester Thermoplastic	8	8	8	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	10 Áin	0.25 Ám	Semi Bellows	1	Female	1	-40 °C	105 ░C	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 341-008-520-108	Single	Non Specified - Single Edge	Solder	Green	8	Through Hole	Copper Alloy	Gold	Polyester Thermoplastic	8	8	8	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	10 Áin	0.25 Ám	Semi Bellows	1	Female	1	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 341-008-524-107	Single	Non Specified - Single Edge	Solder	Green	8	Through Hole	Copper Alloy	Gold	Polyester Thermoplastic	8	8	8	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	10 Áin	0.25 Ám	Semi Bellows	1	Female	1	-40 °C	105 ░C	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 341-008-524-104	Single	Non Specified - Single Edge	Solder	Green	8	Through Hole	Copper Alloy	Gold	Polyester Thermoplastic	8	8	8	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	10 Áin	0.25 Ám	Semi Bellows	1	Female	1	-40 °C	105 ░C	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 in
EDAC Inc. 341-008-521-107	Single	Non Specified - Single Edge	Solder	Green	8	Through Hole	Copper Alloy	Gold	Polyester Thermoplastic	8	8	8	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	10 Áin	0.25 Ám	Semi Bellows	1	Female	1	-40 °C	105 ░C	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 341-008-524-102	Single	Non Specified - Single Edge	Solder	Green	8	Through Hole	Copper Alloy	Gold	Polyester Thermoplastic	8	8	8	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	10 Áin	0.25 Ám	Semi Bellows	1	Female	1	-40 °C	105 ░C	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 341-008-500-107	Single	Non Specified - Single Edge	Solder Eyelet(s)	Green	8	Through Hole	Copper Alloy	Gold	Diallyl Phthalate (DAP)	8	8	8	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	10 Áin	0.25 Ám	Semi Bellows	1	Female	1	-40 °C	105 ░C	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 341-008-521-102	Single	Non Specified - Single Edge	Solder	Green	8	Through Hole	Copper Alloy	Gold	Polyester Thermoplastic	8	8	8	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	10 Áin	0.25 Ám	Semi Bellows	1	Female	1	-40 °C	105 ░C	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 341-008-520-103	Single	Non Specified - Single Edge	Solder	Green	8	Through Hole	Copper Alloy	Gold	Polyester Thermoplastic	8	8	8	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	10 Áin	0.25 Ám	Semi Bellows	1	Female	1	-40 °C	105 ░C	Floating Bobbin Flush Mount	2.95 mm	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 10.73

Description

General part information

341-008 Series

8 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
