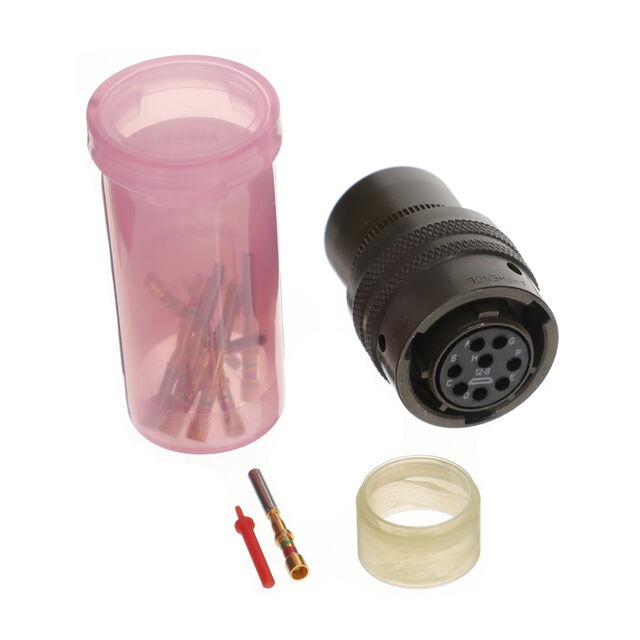

MS3126E12-8S

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB PLUG

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	MS3126E12-8S

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Backshell Material, Plating	Aluminum, Olive Drab Chromate over Cadmium
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert	12-8
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

Part	Grade	Qualification	Primary Material	Backshell Material, Plating	Color	Ingress Protection	Shielding	Shell Size - Insert	Contact Finish - Mating	Insert Material	Voltage Rating	Applications	Mounting Type	Current Rating (Amps)	Shell Material	Connector Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Shell Finish	Contact Material	Fastening Type	Orientation	Number of Positions
Amphenol Industrial Operations MS3126E12-8P(LC)
Amphenol Industrial Operations MS3126E12-3SY	Military	MIL-DTL-26482 Series I	Metal	Aluminum Olive Drab Chromate over Cadmium	Olive Drab	Environment Resistant	Unshielded	12-3	Gold	Neoprene	1000 VAC	Aerospace Industrial Instrumentation Mass Transit Military	Free Hanging (In-Line)	13 A	Aluminum	Female Sockets Plug	Backshell Coupling Nut	-55 °C	125 °C	Crimp	Olive Drab Chromate over Cadmium	Copper Alloy	Bayonet Lock	Y
Amphenol Industrial Operations MS3126E12-3P(LC)
Amphenol Industrial Operations MS3126E12-10P(LC)
Amphenol Industrial Operations MS3126E12-8S	Military	MIL-DTL-26482 Series I	Metal	Aluminum Olive Drab Chromate over Cadmium	Olive Drab	Environment Resistant	Unshielded	12-8	Gold	Neoprene	600 VAC	Aerospace Industrial Instrumentation Mass Transit Military	Free Hanging (In-Line)	7.5 A	Aluminum	Female Sockets Plug	Backshell Coupling Nut	-55 °C	125 °C	Crimp	Olive Drab Chromate over Cadmium	Copper Alloy	Bayonet Lock	N	8
Amphenol Industrial Operations MS3126E12-10S(LC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Plug, Female Sockets Crimp
