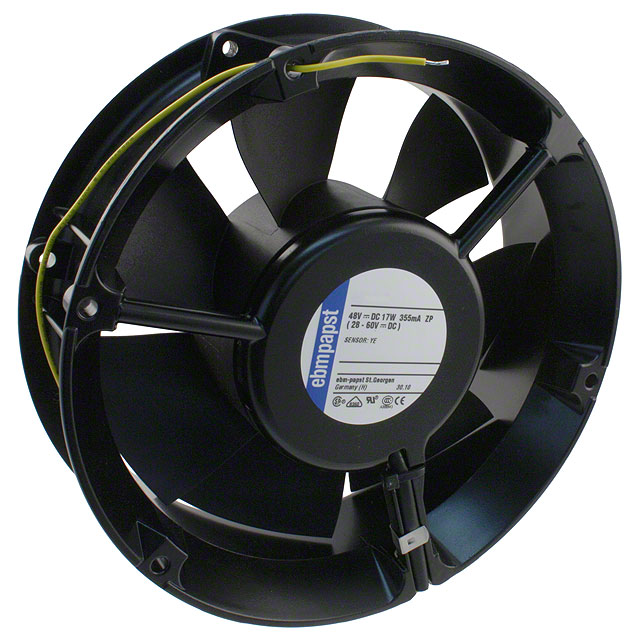

6248N/2
Activeebm-papst Inc.
FAN AXL 171.5X50.8MM 48VDC TERM
Deep-Dive with AI
Search across all available documentation for this part.
6248N/2
Activeebm-papst Inc.
FAN AXL 171.5X50.8MM 48VDC TERM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6248N/2 |
|---|---|
| Air Flow | 241.3 CFM |
| Air Flow | 6.76 mł/min |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach) |
| Lifetime @ Temp. | 75000 Hrs |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Metal |
| Noise | 55 dB |
| Operating Temperature [Max] | 72 °C |
| Operating Temperature [Max] | 162 °F |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 17 W |
| RPM | 3400 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 171.5 mm |
| Termination | 3 Terminals |
| Voltage - Rated [custom] | 48 VDC |
| Voltage Range [Max] | 60 V |
| Voltage Range [Min] | 28 V |
| Weight | 816.5 g |
| Weight | 1.8 lbs |
| Width [y] | 2 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 121.66 | |
| 10 | $ 98.34 | |||
| 25 | $ 91.98 | |||
| 50 | $ 93.65 | |||
| 100 | $ 90.46 | |||
Description
General part information
6248N Series
Fan Tubeaxial 48VDC Round - 171.5mm Dia Ball 241.3 CFM (6.76m³/min) 3 Terminals
