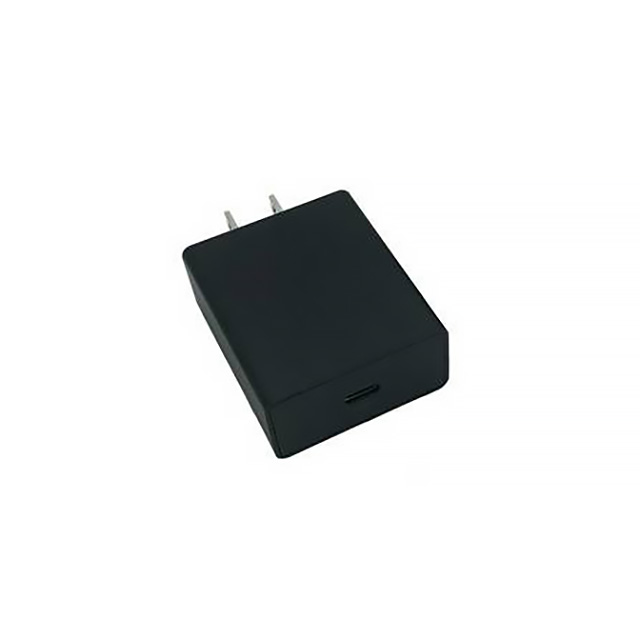

AQ27E-59CFA-H

Active

Phihong USA

AC/DC WALL ADP 5V/9V/12V/15V 27W

Search across all available documentation for this part.

Active

Phihong USA

AC/DC WALL ADP 5V/9V/12V/15V 27W

Technical Specifications

Parameters and characteristics for this part

Specification	AQ27E-59CFA-H

Applications	ITE (Commercial)
Approval Agency	IEC
Current - Output (Max)	3 A, 1.8 A, 2.25 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	CEE 7/16
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	USB C Receptacle
Power (Watts)	27 W
Region Utilized	Europe
Size / Dimension [x]	1.81 in
Size / Dimension [x]	46 mm
Size / Dimension [y]	23 mm
Size / Dimension [y]	0.91 in
Size / Dimension [z]	2.83 "
Size / Dimension [z]	72 mm
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	9 V, 15 VDC, 12 V, 5 V

Part	Power (Watts)	Current - Output (Max)	Output Connector	Efficiency	No Load Power Consumption [Max]	Applications	Form	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	Region Utilized	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output	Input Type	Input Connector
Phihong USA AQ27E-59CFA-H	27 W	1.8 A 2.25 A 3 A	USB C Receptacle	CoC Tier 2 Level VI	75 mW	ITE (Commercial)	Wall Mount (Class II)	90 VAC	264 VAC	40 °C	0 °C	60950-1	Europe	IEC	2.83 "	23 mm	0.91 in	1.81 in	46 mm	72 mm	5 V 9 V 12 V 15 VDC	Fixed Blade	CEE 7/16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V, 9V, 12V, 15V 27 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
