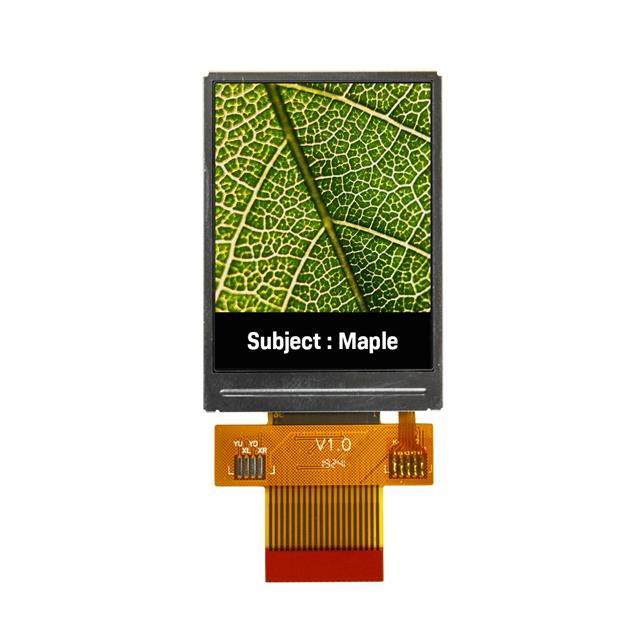

NHD-2.4-240320CF-BSXV-F

Active

Newhaven Display Intl

2.4" TFT 240 X 320 SPI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NHD-2.4-240320CF-BSXV-F

Active

Newhaven Display Intl

2.4" TFT 240 X 320 SPI

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-2.4-240320CF-BSXV-F

Backlight	LED - White
Controller Type	ST7789VI
Diagonal Screen Size	60.96 mm
Diagonal Screen Size [custom]	2.4 in
Display Mode	Transmissive
Display Type	TFT - Color
Dot Pitch [x]	0.15 mm
Dot Pitch [y]	0.15 mm
Dot Pixels [x]	240 pixels
Dot Pixels [y]	320
Graphics Color	Green, Red, Blue
Interface	SPI
Viewing Area [y]	48.96 mm
Viewing Area [z]	36.72 mm

NHD-2.4 Series

Part	Interface	Diagonal Screen Size	Diagonal Screen Size [custom]	Graphics Color	Dot Pixels [y]	Dot Pixels [x]	Backlight	Dot Pitch [y]	Dot Pitch [x]	Display Mode	Display Type	Viewing Area [z]	Viewing Area [y]	Touchscreen	Viewing Area [custom]	Viewing Area [custom]	Controller Type	Viewing Area [x]	Dot Size [x]	Dot Size [y]	Dot Size [z]
Newhaven Display Intl NHD-2.4-240320ZF-CTXI#-T-1	Parallel 16-Bit (RGB)	60.96 mm	2.4 in	Blue Green Red	320	240 pixels	LED - White	0.15 mm	0.05 mm	Transmissive	TFT - Color	54.16 mm	38.72 mm	Resistive
Newhaven Display Intl NHD-2.4-240320CF-CTXI#-F	16-Bit 8-Bit Parallel	60.96 mm	2.4 in	Blue Green Red	320	240 pixels	LED - White	0.15 mm	0.15 mm	Transmissive	TFT - Color				36.72 mm	48.96 mm	ST7789S
Newhaven Display Intl NHD-2.4-240320SF-CTXI#-F1	Parallel 16-Bit (RGB)	60.96 mm	2.4 in	Blue Green Red	320	240 pixels	LED - White			Transmissive	TFT - Color		49.96 mm					37.72 mm	0.15 mm	0.15 mm
Newhaven Display Intl NHD-2.4-240320CF-CSXV#-F	16-Bit 8-Bit Parallel	60.96 mm	2.4 in	Blue Green Red	320	240 pixels	LED - White			Transmissive	TFT - Color				36.72 mm	48.96 mm	ST7789S
Newhaven Display Intl NHD-2.4-240320CF-BSXV-FT	SPI	60.96 mm	2.4 in	Blue Green Red	320	240 pixels	LED - White	0.15 mm	0.15 mm	Transmissive	TFT - Color	36.72 mm	48.96 mm	Resistive			ST7789VI
Newhaven Display Intl NHD-2.4-240320SF-CTXI#	Parallel 16-Bit (RGB)	60.96 mm	2.4 in	Blue Green Red	320	240 pixels	LED - White	0.15 mm	0.15 mm	Transmissive	TFT - Color				36.72 mm	48.96 mm				0.12 mm	0.14 mm
Newhaven Display Intl NHD-2.4-240320YF-CTXI#-T-1	Parallel 16-Bit (RGB)	60.96 mm	2.4 in	Blue Green Red	320	240 pixels	LED - White			Transmissive	TFT - Color			Resistive	38.72 mm	54.36 mm			0.15 mm	0.15 mm
Newhaven Display Intl NHD-2.4-240320CF-BSXV-F	SPI	60.96 mm	2.4 in	Blue Green Red	320	240 pixels	LED - White	0.15 mm	0.15 mm	Transmissive	TFT - Color	36.72 mm	48.96 mm				ST7789VI
Newhaven Display Intl NHD-2.4-240320SF-CTXI#-FT1	Parallel 16-Bit (RGB)	60.96 mm	2.4 in	Blue Green Red	320	240 pixels	LED - White			Transmissive	TFT - Color		54.13 mm	Resistive				38.72 mm	0.15 mm	0.15 mm
Newhaven Display Intl NHD-2.4-240320SF-CTXI#-T1	Parallel 16-Bit (RGB)	60.96 mm	2.4 in	Blue Green Red	320	240 pixels	LED - White			Transmissive	TFT - Color		54.13 mm	Resistive				38.72 mm	0.15 mm	0.15 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 21.73
		5	$ 20.43
		10	$ 20.13

Description

General part information

NHD-2.4 Series

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color SPI 2.4" (60.96mm) 240 x 320

Documents

Technical documentation and resources
