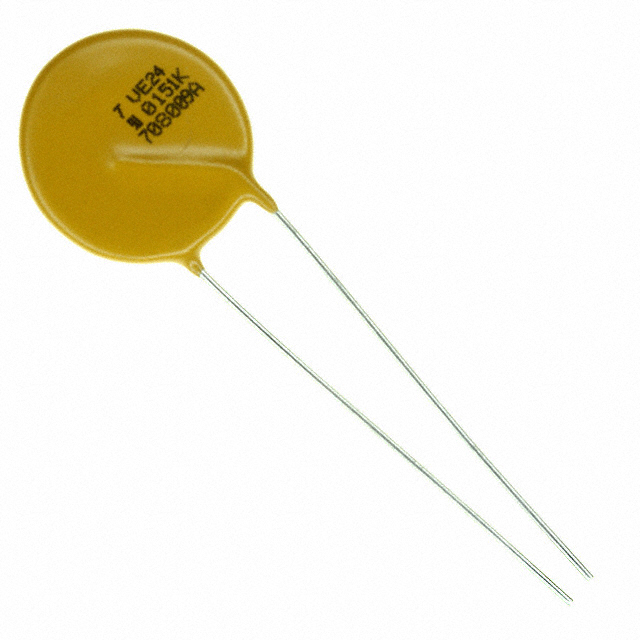

VE24M00151K

Obsolete

Kyocera AVX

VARISTOR 240V 6.5KA DISC 24MM

Search across all available documentation for this part.

Obsolete

Kyocera AVX

VARISTOR 240V 6.5KA DISC 24MM

Technical Specifications

Parameters and characteristics for this part

Part	Maximum AC Volts [Max]	Number of Circuits	Mounting Type	Varistor Voltage (Typ)	Package / Case	Maximum DC Volts [Max]	Varistor Voltage (Min) [Min]	Capacitance @ Frequency	Energy	Operating Temperature [Min]	Operating Temperature [Max]	Varistor Voltage (Max) [Max]	Maximum DC Volts	Current - Surge	Maximum AC Volts
Kyocera AVX VE24M00750K--	75 V	1	Through Hole	120 V	Disc 24mm	100 V	108 V	4200 pF	30 J	-40 °C	125 °C
Kyocera AVX VE24M00141K	140 V	1	Through Hole	220 V	Disc 24mm	180 V	198 V	2250 pF	50 J	-40 °C	125 °C	242 V
Kyocera AVX VE24M00511K--	510 V	1	Through Hole	820 V	Disc 24mm		738 V	550 pF	150 J	-40 °C	125 °C	902 V	670 V
Kyocera AVX VE24P00301K		1	Through Hole	470 V	Disc 24mm	385 V	423 V	1000 pF	340 J	-40 °C	125 °C	517 V		10 kA	300 V
Kyocera AVX VE24M05750K--	575 V	1	Through Hole	910 V	Disc 24mm	730 V	819 V	450 pF	160 J	-40 °C	125 °C	1.001 kV
Kyocera AVX VE24P00251K	250 V	1	Through Hole	390 V	Disc 24mm	320 V	351 V	1300 pF	280 J	-40 °C	125 °C	429 V		10 kA
Kyocera AVX VE24P01750K	175 V	1	Through Hole	270 V	Disc 24mm	225 V	243 V	2000 pF	190 J	-40 °C	125 °C	297 V		10 kA
Kyocera AVX VE24M00151K	150 V	1	Through Hole	240 V	Disc 24mm	200 V	216 V	2000 pF	56 J	-40 °C	125 °C	264 V
Kyocera AVX VE24P00231K	230 V	1	Through Hole	360 V	Disc 24mm	300 V	324 V	1500 pF	250 J	-40 °C	125 °C	396 V		10 kA
Kyocera AVX VE24P00321K--	320 V	1	Through Hole	510 V	Disc 24mm	420 V	459 V		360 J	-40 °C	125 °C	561 V		8 kA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

240 V 6.5 kA Varistor 1 Circuit Through Hole Disc 24mm
