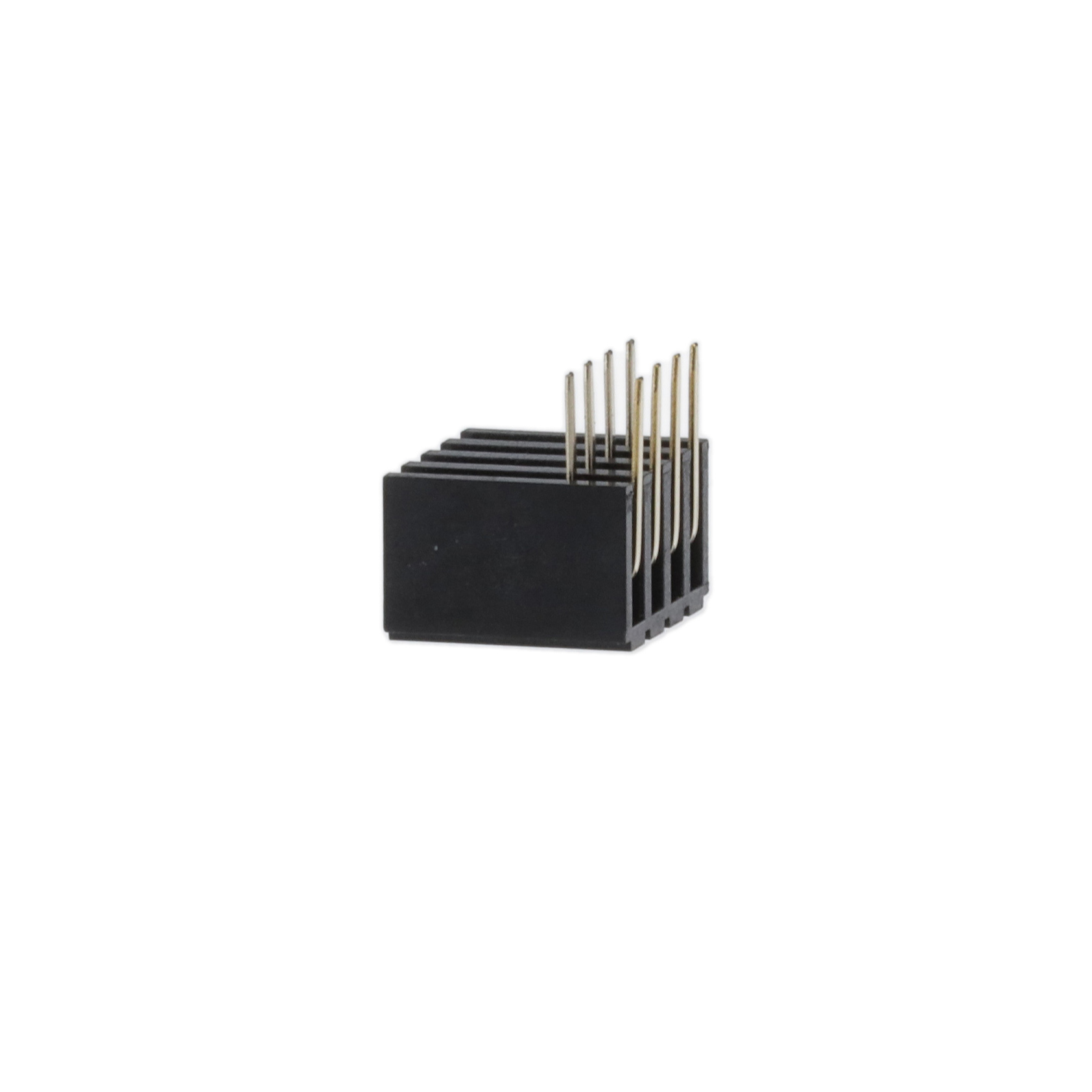

FR20C04HBDN0001

Active

METZ CONNECT USA Inc.

RECEPTACLE, THR, DUAL ROW, 2.00

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

RECEPTACLE, THR, DUAL ROW, 2.00

Technical Specifications

Parameters and characteristics for this part

Specification	FR20C04HBDN0001

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.191 in
Insulation Height	4.85 mm
Insulation Material	Polyethylene Terephthalate (PET), Polyester
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

Part	Contact Shape	Insulation Height	Insulation Height	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post	Fastening Type	Contact Type	Contact Finish - Mating	Insulation Color	Contact Finish Thickness - Mating	Number of Positions Loaded	Termination	Contact Material	Number of Positions	Insulation Material	Connector Type	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Ingress Protection
METZ CONNECT USA Inc. FR20C04HBDN0001	Square	0.191 in	4.85 mm	Through Hole Right Angle	-40 °C	105 ░C	0.079 in	2 mm	2.54 mm	0.1 in	Push-Pull	Female Socket	Gold	Black	Flash	All	Solder	Copper Alloy	4	Polyester Polyethylene Terephthalate (PET)	Receptacle	2	0.079 in	2 mm
METZ CONNECT USA Inc. FR20C04HBNN	Square			Through Hole Right Angle	-40 °C	105 ░C	0.079 in	2 mm	2.54 mm	0.1 in	Push-Pull	Female Socket	Gold	Black	Flash	All	Solder	Copper Alloy	4	Polyester Polyethylene Terephthalate (PET)	Receptacle	1			IP00

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Receptacle Connector 0.079" (2.00mm) Through Hole, Right Angle Gold
