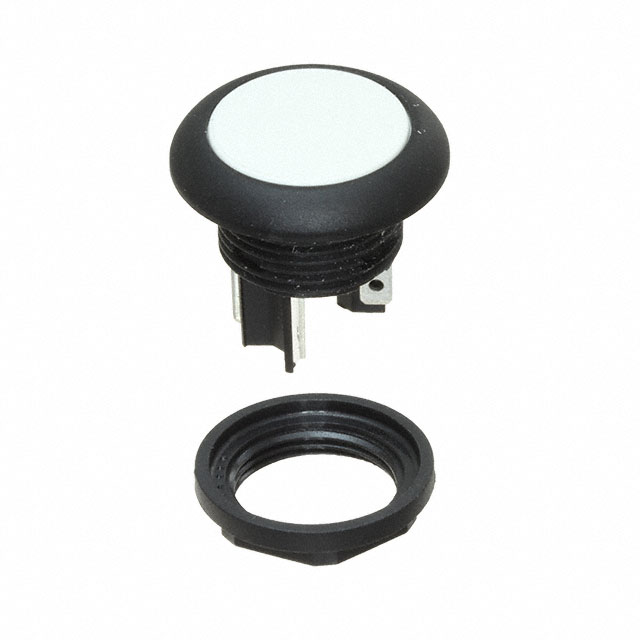

1.15.210.101/2201
ActiveRAFI USA
LUMOSTAST 16 PB ILLUMINABLE WHIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1.15.210.101/2201
ActiveRAFI USA
LUMOSTAST 16 PB ILLUMINABLE WHIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1.15.210.101/2201 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | SPST-NO |
| Color - Actuator/Cap | White |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 500000 Cycles |
| Illumination Type, Color | White, LED |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 16.2 mm |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Type | Illuminated, Standard |
| Voltage Rating - DC | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 33.64 | |
| 10 | $ 29.02 | |||
| 30 | $ 27.03 | |||
| 50 | $ 26.16 | |||
| 100 | $ 25.01 | |||
| 250 | $ 23.57 | |||
Description
General part information
1.15.210 Series
Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
