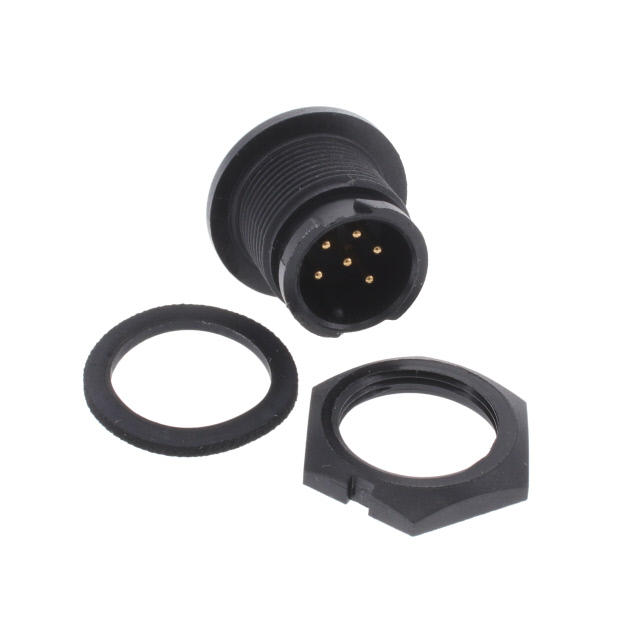

W7C82-6PG-P-300

Active

Conxall/Switchcraft

CONN RCPT MALE 8POS SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 8POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	W7C82-6PG-P-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	UV Resistant
Ingress Protection	IP68, IP66, IP67
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions [custom]	8
Number of Positions [custom]	6
Number of Positions [custom]	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	300 VAC

Part	Current Rating (Amps)	Contact Material	Insert Material	Color	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Shielding	Fastening Type	Ingress Protection	Voltage Rating	Contact Finish - Mating	Orientation	Connector Type	Features	Primary Material	Mounting Feature
Conxall/Switchcraft W7C82-6PG-300	Varies by Wire Gauge	Copper Alloy	Thermoplastic	Black	4	6	2	Thermoplastic	85 °C	-40 °C	Automotive Communication Systems Instrumentation	Unshielded	Bayonet Lock	IP67 IP69K	125 VDC	Gold	Keyed	Male Pins Receptacle	UV Resistant	Plastic	Bulkhead - Front Side Nut
Conxall/Switchcraft W7C82-6PG-P-300	Varies by Wire Gauge	Copper Alloy	Thermoplastic	Black	6	8	2	Thermoplastic	85 °C	-40 °C	Automotive Communication Systems Instrumentation	Unshielded	Bayonet Lock	IP66 IP67 IP68	300 VAC	Gold	Keyed	Male Pins Receptacle	UV Resistant	Plastic	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 13.94

General part information

8 (6 + 2 Power) Position Circular Connector Receptacle, Male Pins Solder Cup

Technical documentation and resources

No documents available
