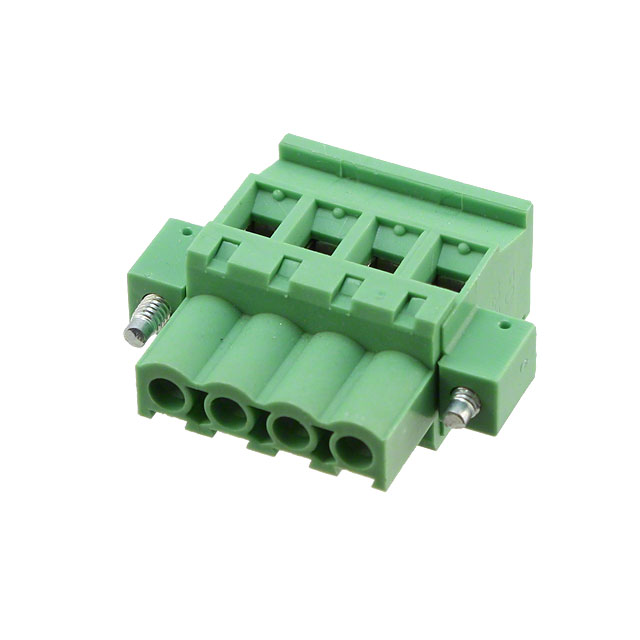

20020011-G041B01LF

Active

Amphenol Anytek

TERM BLOCK PLUG 4POS 270DEG 5MM

Deep-Dive with AI

Search across all available documentation for this part.

20020011-G041B01LF

Active

Amphenol Anytek

TERM BLOCK PLUG 4POS 270DEG 5MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	20020011-G041B01LF

Color	Green
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Current - UL	12 A
Features	Retention Latches (Non-Wire Side), Mating Flange
Housing Material	Thermoplastic Resin
Insulation Height	1.024 "
Insulation Height	26.01 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	4
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Plug Wire Entry	270 °
Positions Per Level	4
Screw Size	M3
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.4 Nm
Torque - Screw	3.5 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm² [Max]	2.5 mm²
Wire Gauge or Range - mm² [Min]	1 mm²
Wire Strip Length [Max]	7 mm
Wire Strip Length [Min]	6 mm

20020011 Series

Part	Mounting Type	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Current - UL	Positions Per Level	Contact Material	Housing Material	Insulation Height	Insulation Height	Wire Strip Length [Max]	Wire Strip Length [Min]	Material Flammability Rating	Pitch [x]	Pitch [x]	Voltage - UL	Screw Size	Type	Number of Levels	Features	Termination Style	Color	Plug Wire Entry	Number of Positions	Contact Mating Finish	Torque - Screw	Torque - Screw	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol Anytek 20020011-H021B01LF	Free Hanging (In-Line)	2.5 mm²	1 mm²	12 A	2	Copper Alloy	Thermoplastic Resin	1.024 "	26.01 mm	7 mm	6 mm	UL94 V-0	0.2 in	5.08 mm	300 V	M3	Plug Female Sockets	1	Mating Flange Retention Latches (Non-Wire Side)	Screw - Rising Cage Clamp	Green	270 °	2	Tin	0.4 Nm	3.5 Lb-In	24 AWG	12 AWG	-40 °C	115 °C
Amphenol Anytek 20020011-G041B01LF	Free Hanging (In-Line)	2.5 mm²	1 mm²	12 A	4	Copper Alloy	Thermoplastic Resin	1.024 "	26.01 mm	7 mm	6 mm	UL94 V-0	0.197 in	5 mm	300 V	M3	Plug Female Sockets	1	Mating Flange Retention Latches (Non-Wire Side)	Screw - Rising Cage Clamp	Green	270 °	4	Tin	0.4 Nm	3.5 Lb-In	24 AWG	12 AWG	-40 °C	115 °C
Amphenol Anytek 20020011-G081B01LF	Free Hanging (In-Line)	2.5 mm²	1 mm²	12 A	8	Copper Alloy	Thermoplastic Resin	1.024 "	26.01 mm	7 mm	6 mm	UL94 V-0	0.197 in	5 mm	300 V	M3	Plug Female Sockets	1	Mating Flange Retention Latches (Non-Wire Side)	Screw - Rising Cage Clamp	Green	270 °	8	Tin	0.4 Nm	3.5 Lb-In	24 AWG	12 AWG	-40 °C	115 °C
Amphenol Anytek 20020011-G031B01LF	Free Hanging (In-Line)	2.5 mm²	1 mm²	12 A	3	Copper Alloy	Thermoplastic Resin	1.024 "	26.01 mm	7 mm	6 mm	UL94 V-0	0.197 in	5 mm	300 V	M3	Plug Female Sockets	1	Mating Flange Retention Latches (Non-Wire Side)	Screw - Rising Cage Clamp	Green	270 °		Tin	0.4 Nm	3.5 Lb-In	24 AWG	12 AWG	-40 °C	115 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1320	$ 0.83

Description

General part information

20020011 Series

4 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 270° Free Hanging (In-Line)

Documents

Technical documentation and resources

No documents available
