M49142/09-0017

Active

Cinch Connectivity Solutions Trompeter

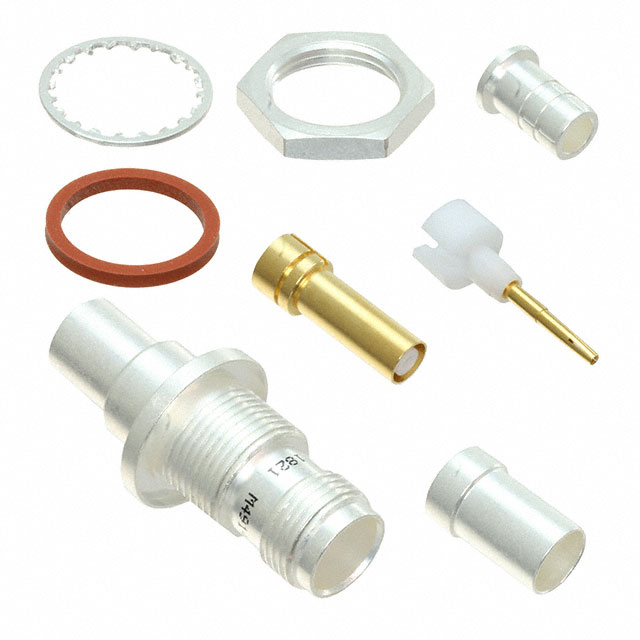

TRT BULKHEAD CABLE JACK, STRAIGH

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

TRT BULKHEAD CABLE JACK, STRAIGH

Technical Specifications

Parameters and characteristics for this part

Specification	M49142/09-0017

Body Finish	Silver
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TRT, Twinaxial
Connector Type	Female Socket (Concentric), Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	500 MHz
Housing Color	Silver
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp

Part	Frequency - Max [Max]	Center Contact Material	Body Finish	Shield Termination	Body Material	Number of Ports	Connector Style	Contact Termination	Dielectric Material	Connector Type	Center Contact Plating	Housing Color	Mounting Type	Cable Group	Impedance	Mounting Feature
Cinch Connectivity Solutions Trompeter M49142/09-0017	500 MHz	Beryllium Copper	Silver	Crimp	Brass	1	TRT Twinaxial	Crimp	Polytetrafluoroethylene (PTFE)	Female Socket (Concentric) Jack	Gold	Silver	Free Hanging (In-Line)
Cinch Connectivity Solutions Trompeter M49142/09-0006	500 MHz		Nickel	Crimp		1	TRT Twinaxial	Solder		Female Socket (Concentric) Jack	Gold	Silver		M17/176-00002	Non-Constant	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 188.22

General part information

TRT, Twinaxial Connector Jack, Female Socket (Concentric) Free Hanging (In-Line) Crimp
