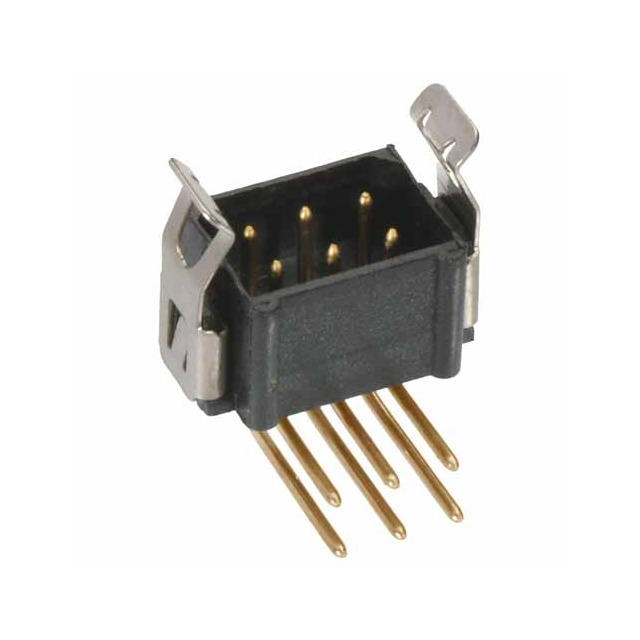

B5743-206-M-L-3 - B5743-204-M-L-3

B5743-206-M-L-3

Active
Harwin Inc.

3+3 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. LATCHES (BS RELEASE) ROHS COMPLIANT: NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80, M83 Series Spec SheetDatasheet+2
B5743-206-M-L-3 - B5743-204-M-L-3

B5743-206-M-L-3

Active
Harwin Inc.

3+3 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. LATCHES (BS RELEASE) ROHS COMPLIANT: NO

Deep-Dive with AI

DocumentsM80, M83 Series Spec SheetDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationB5743-206-M-L-3
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostGold
Contact Finish Thickness - Mating29.5 Áin
Contact Finish Thickness - Mating0.75 Ám
Contact Finish Thickness - Post29.5 µin
Contact Finish Thickness - Post0.75 µm
Contact Length - Post0.118 in
Contact Length - Post3 mm
Contact MaterialPhosphor Bronze
Contact ShapeCircular
Contact TypeMale Pin
Current Rating (Amps)2.2 A
Fastening TypeLatch Lock
Insulation ColorBlack
Insulation Height5.97 mm
Insulation Height0.235 in
Insulation MaterialPolyester, Glass Filled
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions6
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating [x]0.079 in
Pitch - Mating [x]2 mm
Row Spacing - Mating0.079 in
Row Spacing - Mating2 mm
ShroudingShrouded - 4 Wall
StyleBoard to Board, Cable
TerminationSolder
Voltage Rating120 VAC

B5743-2 Series

PartContact Finish - MatingInsulation Height [z]Insulation HeightShroudingContact Finish Thickness - MatingContact Finish Thickness - MatingContact MaterialRow Spacing - MatingRow Spacing - MatingStyleContact Finish Thickness - PostContact Finish Thickness - PostConnector TypePitch - Mating [x]Pitch - Mating [x]Number of Positions LoadedContact ShapeMated Stacking HeightsInsulation ColorFastening TypeMaterial Flammability RatingContact Length - PostContact Length - PostContact TypeNumber of RowsVoltage RatingCurrent Rating (Amps)Operating Temperature [Min]Operating Temperature [Max]TerminationContact Finish - PostMounting TypeInsulation MaterialNumber of PositionsInsulation HeightFeatures
Harwin Inc.
B5743-214-M-T-2
Gold
0.219 in
5.56 mm
Shrouded - 4 Wall
29.5 Áin
0.75 Ám
Phosphor Bronze
0.079 in
2 mm
Board to Board
Cable
29.5 µin
0.75 µm
Header
0.079 in
2 mm
All
Circular
7.23 mm
7.83 mm
Black
Latch Holder
UL94 V-0
0.118 in
3 mm
Male Pin
2
800 VAC
2.2 A
-55 °C
125 °C
Solder
Gold
Through Hole
Polyester
Glass Filled
14
Harwin Inc.
B5743-226-M-L-3
Gold
5.97 mm
Shrouded - 4 Wall
29.5 Áin
0.75 Ám
Phosphor Bronze
0.079 in
2 mm
Board to Board
Cable
29.5 µin
0.75 µm
Header
0.079 in
2 mm
All
Circular
Black
Latch Lock
UL94 V-0
0.118 in
3 mm
Male Pin
2
120 VAC
2.2 A
-55 °C
125 °C
Solder
Gold
Through Hole
Right Angle
Polyester
Glass Filled
26
0.235 in
Harwin Inc.
B5743-208-M-T-2
Gold
0.219 in
5.56 mm
Shrouded - 4 Wall
29.5 Áin
0.75 Ám
Phosphor Bronze
0.079 in
2 mm
Board to Cable/Wire
29.5 µin
0.75 µm
Header
0.079 in
2 mm
All
Circular
7.23 mm
7.83 mm
Black
Push-Pull
UL94 V-0
0.118 in
3 mm
Male Pin
2
800 VAC
3 A
-55 °C
125 °C
Solder
Gold
Through Hole
Polyester
Glass Filled
8
Harwin Inc.
B5743-206-M-T-3
Gold
0.219 in
5.56 mm
Shrouded - 4 Wall
3 µin
0.076 µm
Phosphor Bronze
0.079 in
2 mm
Board to Board
Cable
Header
0.079 in
2 mm
All
Circular
7.23 mm
7.83 mm
Black
Latch Lock
UL94 V-0
0.118 in
3 mm
Male Pin
2
800 VAC
2.2 A
-55 °C
125 °C
Solder
Gold
Through Hole
Polyester
Glass Filled
6
Harwin Inc.
B5743-208-M-L-3
Gold
5.97 mm
Shrouded - 4 Wall
29.5 Áin
0.75 Ám
Phosphor Bronze
0.079 in
2 mm
Board to Board
Cable
29.5 µin
0.75 µm
Header
0.079 in
2 mm
All
Circular
Black
Latch Lock
UL94 V-0
0.118 in
3 mm
Male Pin
2
120 VAC
2.2 A
-55 °C
125 °C
Solder
Gold
Through Hole
Right Angle
Polyester
Glass Filled
8
0.235 in
Harwin Inc.
B5743-204-M-L-3
Gold
5.97 mm
Shrouded - 4 Wall
29.5 Áin
0.75 Ám
Phosphor Bronze
0.079 in
2 mm
Board to Board
Cable
29.5 µin
0.75 µm
Header
0.079 in
2 mm
All
Circular
Black
Latch Lock
UL94 V-0
0.118 in
3 mm
Male Pin
2
120 VAC
2.2 A
-55 °C
125 °C
Solder
Gold
Through Hole
Right Angle
Polyester
Glass Filled
4
0.235 in
Harwin Inc.
B5743-206-M-L-3
Gold
5.97 mm
Shrouded - 4 Wall
29.5 Áin
0.75 Ám
Phosphor Bronze
0.079 in
2 mm
Board to Board
Cable
29.5 µin
0.75 µm
Header
0.079 in
2 mm
All
Circular
Black
Latch Lock
UL94 V-0
0.118 in
3 mm
Male Pin
2
120 VAC
2.2 A
-55 °C
125 °C
Solder
Gold
Through Hole
Right Angle
Polyester
Glass Filled
6
0.235 in
Harwin Inc.
B5743-218-M-T-3
Gold
0.219 in
5.56 mm
Shrouded - 4 Wall
3 µin
0.076 µm
Phosphor Bronze
0.079 in
2 mm
Board to Board
Cable
Header
0.079 in
2 mm
All
Circular
7.23 mm
7.83 mm
Black
Latch Lock
UL94 V-0
0.118 in
3 mm
Male Pin
2
800 VAC
2.2 A
-55 °C
125 °C
Solder
Gold
Through Hole
Polyester
Glass Filled
18
Harwin Inc.
B5743-210-M-T-3
Gold
0.219 in
5.56 mm
Shrouded - 4 Wall
3 µin
0.076 µm
Phosphor Bronze
0.079 in
2 mm
Board to Board
Cable
Header
0.079 in
2 mm
All
Circular
7.23 mm
7.83 mm
Black
Latch Lock
UL94 V-0
0.118 in
3 mm
Male Pin
2
800 VAC
2.2 A
-55 °C
125 °C
Solder
Gold
Through Hole
Polyester
Glass Filled
10
Harwin Inc.
B5743-234-M-L-2
Gold
5.97 mm
Shrouded - 4 Wall
29.5 Áin
0.75 Ám
Phosphor Bronze
0.079 in
2 mm
Board to Board
Cable
29.5 µin
0.75 µm
Header
0.079 in
2 mm
All
Square
Black
Latch Holder
UL94 V-0
0.118 in
3 mm
Male Pin
2
120 VAC
2.2 A
-55 °C
125 °C
Solder
Gold
Through Hole
Right Angle
Polybutylene Terephthalate (PBT)
Glass Filled
34
0.235 in
Strain Relief Clips

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 52$ 9.51
NewarkEach 50$ 10.36
100$ 10.10
250$ 9.05
500$ 8.53
1000$ 7.48
2500$ 7.12

Description

General part information

B5743-2 Series

Connector Header Through Hole, Right Angle 6 position 0.079" (2.00mm)
