35681004D

Active

SAB North America

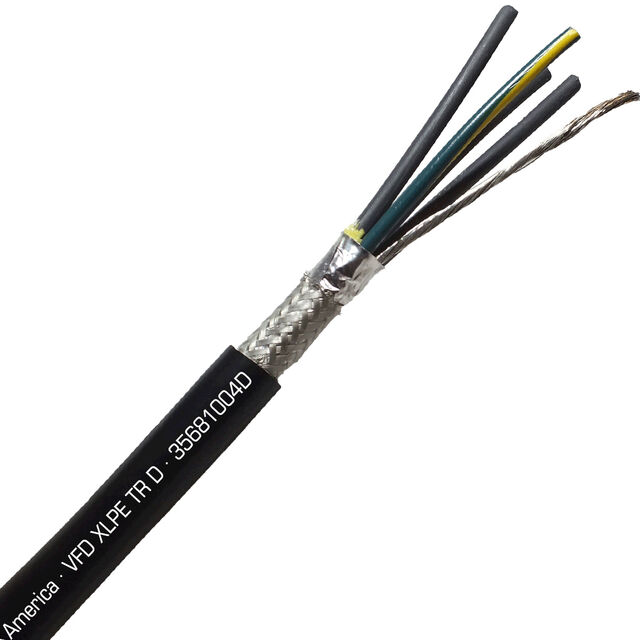

CABLE 4COND 10AWG BLK SHLD 1=1FT

Search across all available documentation for this part.

Active

SAB North America

CABLE 4COND 10AWG BLK SHLD 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	35681004D

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (XLPE), Irradiated
Conductor Material	Copper, Tinned
Features	Drain Wire, Oil Resistant, Flame Retardant, Direct Burial, UV Resistant
Jacket (Insulation) Diameter	17.27 mm
Jacket (Insulation) Diameter	0.68 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	Enter Number of Feet in Order Quantity
Number of Conductors	4
Shield Material	Copper, Tinned
Shield Type	Foil, Braid
Usage	Servo Motor, Industrial
Wire Gauge	10 AWG

Part	Number of Conductors	Length	Jacket Color	Shield Type	Conductor Material	Jacket (Insulation) Material	Wire Gauge	Usage	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Shield Material	Features	Conductor Insulation	Cable Type
SAB North America 35681004D	4	Enter Number of Feet in Order Quantity	Black	Braid Foil	Copper Tinned	Poly-Vinyl Chloride (PVC)	10 AWG	Industrial Servo Motor	17.27 mm	0.68 "	Copper Tinned	Direct Burial Drain Wire Flame Retardant Oil Resistant UV Resistant	Polyethylene (XLPE) Irradiated	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Black 10 AWG Foil, Braid Enter Number of Feet in Order Quantity

Technical documentation and resources
