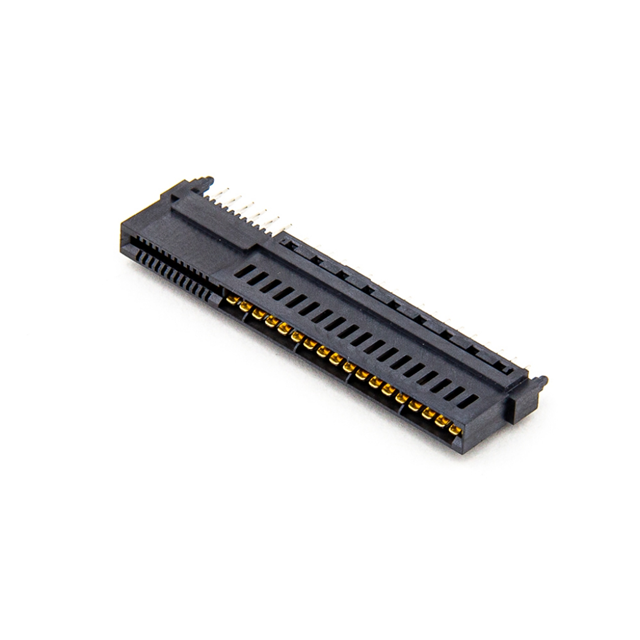

9302-2A1S24N11ACB30PA

Active

Oupiin

CONN EDGE DUAL FMALE 60POS GOLD

Search across all available documentation for this part.

Active

Oupiin

CONN EDGE DUAL FMALE 60POS GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	9302-2A1S24N11ACB30PA

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze, Copper
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions [custom]	60
Number of Positions [custom]	36
Number of Positions/Bay/Row [custom]	12
Number of Positions/Bay/Row [custom]	18
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Read Out	Dual
Termination	Press-Fit

Part	Number of Positions [custom]	Number of Positions [custom]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Color	Termination	Material - Insulation	Card Type	Mounting Type	Gender	Number of Rows	Card Thickness	Card Thickness	Read Out	Contact Finish
Oupiin 9302-2A1S24N11ACB30PA	60	36	0.76 Ám	30 Áin	12	18	105 ░C	-55 °C	Copper Phosphor Bronze	Black	Press-Fit	Liquid Crystal Polymer (LCP)	Non Specified - Dual Edge	Through Hole	Female	2	0.062 in	1.57 mm	Dual	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 (24 + 36 Power) Position Female Connector Non Specified - Dual Edge Gold Black

Technical documentation and resources

No documents available
