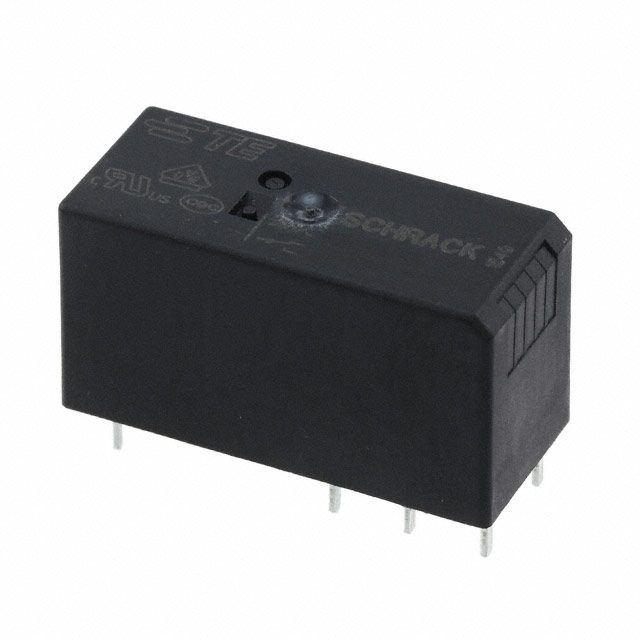

1-2158100-9

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 16A 5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-2158100-9

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 16A 5V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-2158100-9

Approval Agency	CQC, VDE, cURus
Coil Current	106 mA
Coil Insulation	Class F
Coil Resistance	47 Ohms
Coil Type	Non Latching
Coil Voltage	5 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	16 A
Load - Max Switching	6400 VA
Mounting Type	Through Hole
Must Operate Voltage	3.5 VDC
Must Release Voltage	0.5 VDC
Operate Time	8 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	6 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage [Max]	400 VAC
Termination Style	PC Pin

2158100 Series

Part	Must Operate Voltage	Coil Type	Termination Style	Operate Time	Approval Agency	Load - Max Switching	Release Time	Coil Resistance	Contact Rating (Current)	Switching Voltage [Max]	Must Release Voltage	Coil Voltage	Contact Form	Contact Material	Relay Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Coil Insulation	Seal Rating	Coil Current
TE Connectivity Potter & Brumfield Relays 3-2158100-4	8.4 VDC	Non Latching	PC Pin	8 ms	CQC cURus VDE	6400 VA	6 ms	272 Ohms	12 A	400 VAC	1.2 VDC	12 VDC	SPDT (1 Form C)	Silver Nickel (AgNi)	General Purpose	-40 °C	70 °C	Through Hole	Class F
TE Connectivity Potter & Brumfield Relays 2-2158100-2	8.4 VDC	Non Latching	PC Pin	8 ms	CQC cURus VDE	6400 VA	6 ms	272 Ohms	16 A	400 VAC	1.2 VDC	12 VDC	SPDT (1 Form C)	Silver Nickel (AgNi)	General Purpose	-40 °C	70 °C	Through Hole	Class F	Sealed - Flux Protection
TE Connectivity Potter & Brumfield Relays 1-2158100-9	3.5 VDC	Non Latching	PC Pin	8 ms	CQC cURus VDE	6400 VA	6 ms	47 Ohms	16 A	400 VAC	0.5 VDC	5 VDC	SPDT (1 Form C)	Silver Nickel (AgNi)	General Purpose	-40 °C	70 °C	Through Hole	Class F	Sealed - Flux Protection	106 mA
TE Connectivity Potter & Brumfield Relays 2-2158100-3	16.8 VDC	Non Latching	PC Pin	8 ms	CQC cURus VDE	6400 VA	6 ms	1.09 kOhms	16 A	400 VAC	2.4 VDC	24 VDC	SPDT (1 Form C)	Silver Nickel (AgNi)	General Purpose	-40 °C	70 °C	Through Hole	Class F	Sealed - Flux Protection	22.1 mA
TE Connectivity Potter & Brumfield Relays 1-2158100-7	16.8 VDC	Non Latching	PC Pin	8 ms	CQC cURus VDE	6400 VA	6 ms	1.09 kOhms	16 A	400 VAC	2.4 VDC	24 VDC	SPST-NO (1 Form A)	Silver Nickel (AgNi)	General Purpose	-40 °C	70 °C	Through Hole	Class F	Sealed - Flux Protection	22.1 mA
TE Connectivity Potter & Brumfield Relays 2158100-4	8.4 VDC	Non Latching	PC Pin	8 ms	CQC cURus VDE	6400 VA	6 ms	272 Ohms	16 A	400 VAC	1.2 VDC	12 VDC	SPST-NO (1 Form A)	Silver Nickel (AgNi)	General Purpose	-40 °C	70 °C	Through Hole	Class F	Sealed - Flux Protection

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

2158100 Series

General Purpose Relay SPDT (1 Form C) 5VDC Coil Through Hole
