AS4C16M16MSB-6BIN

Active

Alliance Memory, Inc.

IC DRAM 256MBIT LVCMOS 54FBGA

Deep-Dive with AI

Search across all available documentation for this part.

AS4C16M16MSB-6BIN

Active

Alliance Memory, Inc.

IC DRAM 256MBIT LVCMOS 54FBGA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AS4C16M16MSB-6BIN

Access Time	5.5 ns
Clock Frequency	166 MHz
Memory Format	DRAM
Memory Interface	LVCMOS
Memory Organization	16 M
Memory Size	256 Gbit
Memory Type	Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

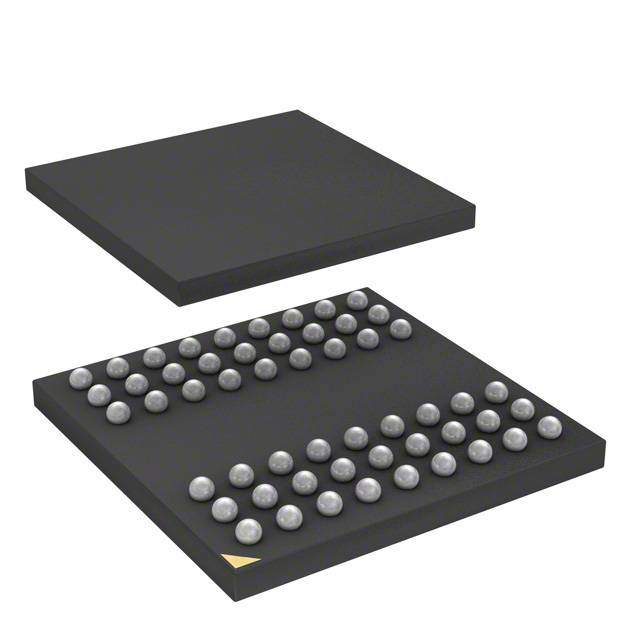

Package / Case	54-TFBGA
Supplier Device Package	54-FBGA (8x8)
Technology	SDRAM - Mobile SDRAM
Voltage - Supply [Max]	1.95 V
Voltage - Supply [Min]	1.7 V
Write Cycle Time - Word, Page	15 ns

AS4C16 Series

Part	Access Time	Package / Case	Supplier Device Package	Write Cycle Time - Word, Page	Memory Type	Memory Size	Memory Organization	Technology	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Interface	Clock Frequency	Memory Format	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Memory Organization	Package / Case [custom]	Package / Case [custom]
Alliance Memory, Inc. AS4C16M16D2-25BIN	400 ps	84-TFBGA	84-TFBGA (8x12.5)	15 ns	Volatile	256 Gbit	16 M	SDRAM - DDR2	1.9 V	1.7 V	Parallel	400 MHz	DRAM	Surface Mount	95 °C	-40 °C
Alliance Memory, Inc. AS4C16M32MSB-6BIN	5.5 ns	90-VFBGA	90-FBGA (8x13)	15 ns	Volatile	64 MB		SDRAM	1.95 V	1.7 V	Parallel	166 MHz	DRAM	Surface Mount	85 °C	-40 °C	16M x 32
Alliance Memory, Inc. AS4C16M16D1-5TCN	700 ps	66-TSSOP	66-TSOP II	15 ns	Volatile	256 Gbit	16 M		2.7 V	2.3 V	Parallel	200 MHz	DRAM	Surface Mount	70 °C	0 °C		0.4 in	0.4 in
Alliance Memory, Inc. AS4C16M16MSB-6BIN	5.5 ns	54-TFBGA	54-FBGA (8x8)	15 ns	Volatile	256 Gbit	16 M	SDRAM - Mobile SDRAM	1.95 V	1.7 V	LVCMOS	166 MHz	DRAM	Surface Mount	85 °C	-40 °C
Alliance Memory, Inc. AS4C16M16SB-6BIN	5 ns	54-TFBGA	54-TFBGA (8x8)	12 ns	Volatile	256 Gbit	16 M	SDRAM	3.6 V	3 V	LVTTL	166 MHz	DRAM	Surface Mount	85 °C	-40 °C
Alliance Memory, Inc. AS4C16M16SB-7TCNTR	5.4 ns		54-TSOP II	14 ns	Volatile	256 Gbit	16 M	SDRAM	3.6 V	3 V	LVTTL	143 MHz	DRAM	Surface Mount	70 °C	0 °C
Alliance Memory, Inc. AS4C16M16SA-6BIN	5 ns	54-TFBGA	54-TFBGA (8x8)	12 ns	Volatile	256 Gbit	16 M	SDRAM	3.6 V	3 V	Parallel	166 MHz	DRAM	Surface Mount	85 °C	-40 °C
Alliance Memory, Inc. AS4C16M16MSB-6BINTR	5.5 ns	54-TFBGA	54-FBGA (8x8)	15 ns	Volatile	256 Gbit	16 M	SDRAM - Mobile LPSDR	1.95 V	1.7 V	LVCMOS	166 MHz	DRAM	Surface Mount	85 °C	-40 °C
Alliance Memory, Inc. AS4C16M16SB-6TINTR	5 ns		54-TSOP II	12 ns	Volatile	256 Gbit	16 M	SDRAM	3.6 V	3 V	LVTTL	166 MHz	DRAM	Surface Mount	85 °C	-40 °C
Alliance Memory, Inc. AS4C16M16SB-6BINTR	5 ns	54-TFBGA	54-TFBGA (8x8)	12 ns	Volatile	256 Gbit	16 M	SDRAM	3.6 V	3 V	LVTTL	166 MHz	DRAM	Surface Mount	85 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.77
		10	$ 6.90
		25	$ 6.58
		40	$ 6.42
		80	$ 6.20
		319	$ 5.77
		638	$ 5.56
		957	$ 5.45

Description

General part information

AS4C16 Series

SDRAM - Mobile SDRAM Memory IC 256Mbit LVCMOS 166 MHz 5.5 ns 54-FBGA (8x8)

Documents

Technical documentation and resources

No documents available
