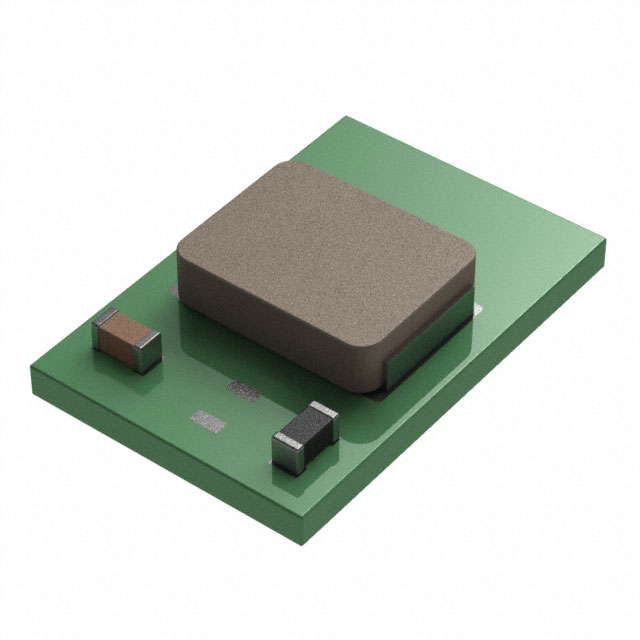

MUN12AD01-SG

Active

Delta Electronics/Cyntec

DC DC CONVERTER 0.8-6V

Search across all available documentation for this part.

Active

Delta Electronics/Cyntec

DC DC CONVERTER 0.8-6V

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Applications	Voltage - Input (Min) [Min]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Supplier Device Package	Voltage - Input (Max) [Max]	Mounting Type	Efficiency	Current - Output (Max) [Max]	Type	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Package / Case
Delta Electronics/Cyntec MUN12AD01-SG	0.15 "	1.6 mm	2.6 mm	0.1 in	0.06 "	3.9 mm	ITE (Commercial)	4.5 V	OCP OTP Remote On/Off UVLO	85 °C	-40 °C	1	6-DFN (3.9x2.6)	16 V	Surface Mount	94 %	1 A	Non-Isolated PoL Module	0.8 V	6 V	6-LDFN Module
Delta Electronics/Cyntec MUN12AD01-SH	0.14 "	1.7 mm	3.5 mm	0.14 "	0.07 "	3.5 mm	ITE (Commercial)	4.5 V	OCP OTP Remote On/Off UVLO	85 °C	-40 °C	1	8-QFN (3.5x3.5)	17 V	Surface Mount	95 %	1 A	Non-Isolated PoL Module	1 V	5 V	8-LQFN Exposed Pad Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.62
	Digi-Reel®	1	$ 2.62
	Tape & Reel (TR)	1000	$ 2.63

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 6V 1A 4.5V - 16V Input
