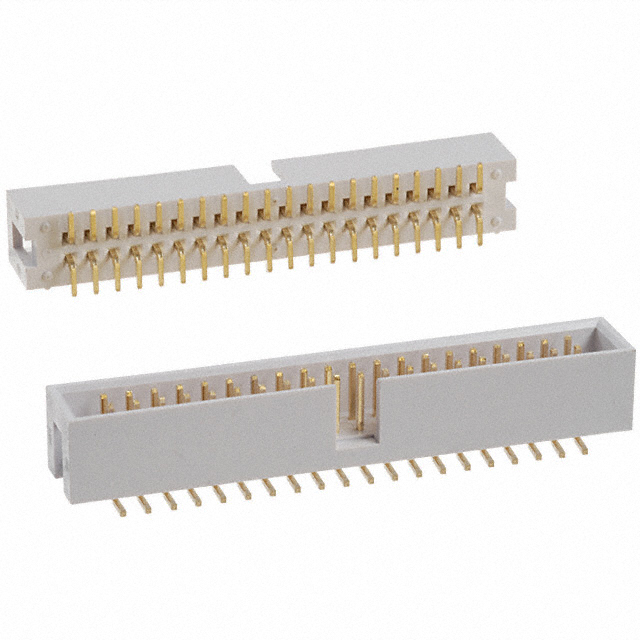

AWHW 40G-SMD

Active

Assmann WSW Components

CONN HEADER SMD 40POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AWHW 40G-SMD

Active

Assmann WSW Components

CONN HEADER SMD 40POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AWHW 40G-SMD

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	5.9 mm
Contact Length - Mating	0.232 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Pick and Place, Keying Slot
Insulation Color	Black
Insulation Height	9 mm
Insulation Height	0.354 in
Insulation Material	Polyamide (PA9T), Nylon 9T, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

AWHW 40 Series

Part	Shrouding	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Features	Fastening Type	Contact Material	Style	Contact Shape	Current Rating (Amps)	Number of Rows	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Mounting Type	Connector Type	Material Flammability Rating	Number of Positions Loaded	Contact Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Insulation Color	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating [x]	Pitch - Mating [x]
Assmann WSW Components AWHW 40G-SMD	Shrouded - 4 Wall	0.1 in	2.54 mm	Gold	Keying Slot Pick and Place	Push-Pull	Brass	Board to Cable/Wire	Square	3 A	2	9 mm	0.354 in	5.9 mm	0.232 in	Surface Mount	Header	UL94 V-0	All	Male Pin	40	-40 °C	105 ░C	Solder	Black	Flash	2.54 mm	0.1 in	Polyamide (PA9T) Nylon 9T Glass Filled
Assmann WSW Components AWHW 40A-0202-T	Shrouded - 4 Wall	0.1 in	2.54 mm	Gold	Keying Slot	Push-Pull	Brass	Board to Cable/Wire	Square	3 A	2	8.95 mm	0.352 in			Through Hole Right Angle	Header	UL94 V-0	All	Male Pin	40	-40 °C	105 ░C	Solder	Gray	Flash	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	0.224 in	5.7 mm	3.15 mm	0.124 "	Tin
Assmann WSW Components AWHW 40G-SMD-200	Shrouded - 4 Wall			Gold	Keying Slot Pick and Place	Push-Pull	Brass	Board to Cable/Wire	Square	1.5 A	2	5.74 mm	0.226 in	4 mm	0.157 in	Surface Mount	Header	UL94 V-0	All	Male Pin	40	-40 °C	105 ░C	Solder	Black	Flash			Polyamide (PA9T) Nylon 9T Glass Filled						0.079 in	2 mm	0.079 in	2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.01
		18	$ 1.75
		108	$ 1.57
		504	$ 1.30
		1008	$ 1.12
		5004	$ 0.99
		10008	$ 0.97

Description

General part information

AWHW 40 Series

Connector Header Surface Mount 40 position 0.100" (2.54mm)
