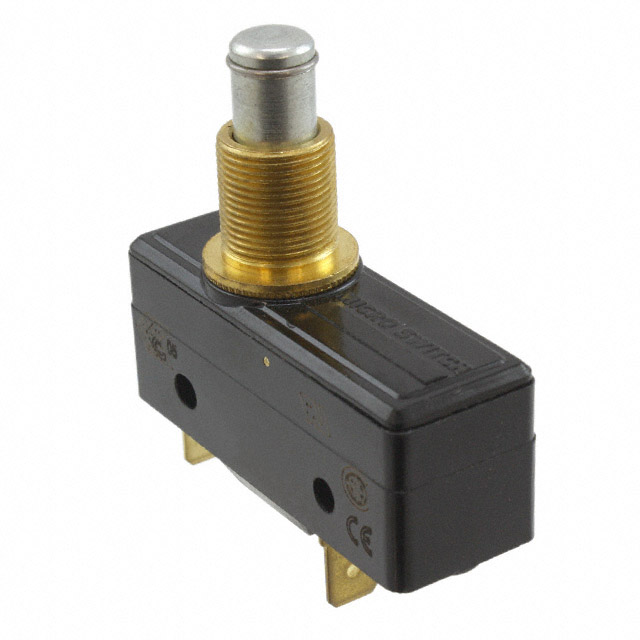

YA-2RQ1243-D6
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT SPST-NO 20A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
YA-2RQ1243-D6
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT SPST-NO 20A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | YA-2RQ1243-D6 |
|---|---|
| Actuator Type | Overtravel Plunger |
| Circuit | SPST-NO |
| Current Rating (Amps) | 500 mA, 20 A |
| Differential Travel | 0.007 in |
| Differential Travel | 0.18 mm |
| Features | Steel Plunger |
| Mechanical Life | 20000000 Cycles |
| Operating Force [Max] | 624 gf |
| Operating Force [Min] | 397 gf |
| Operating Position | 0.859 in |
| Operating Position | 21.8 mm |
| Operating Temperature [Max] | 121 °C |
| Operating Temperature [Min] | -55 °C |
| Overtravel | 5.6 mm |
| Overtravel | 0.219 in |
| Pretravel | 0.05 in |
| Pretravel | 1.27 mm |
| Release Force | 283 gf |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
YA-2RQ Series
Switch SPST-NO Panel Mount
