031-6875

Active

Amphenol RF

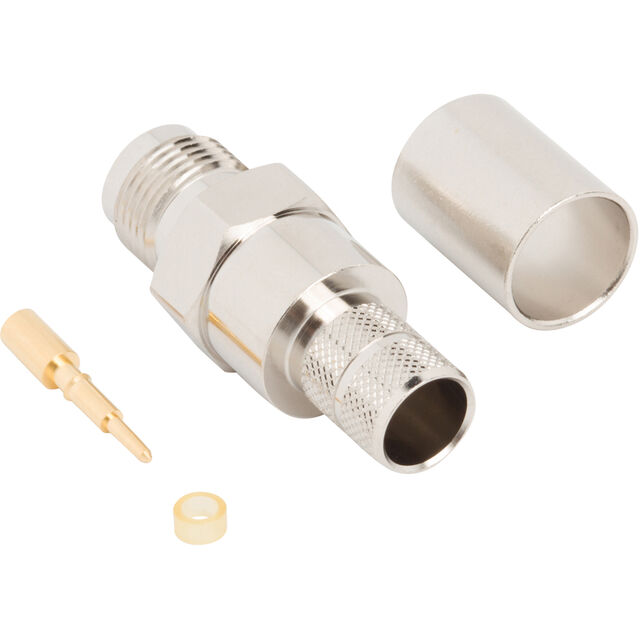

RF CONNECTOR RP-TNC STRAIGHT CRI

Deep-Dive with AI

Search across all available documentation for this part.

031-6875

Active

Amphenol RF

RF CONNECTOR RP-TNC STRAIGHT CRI

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	031-6875

Body Finish	Nickel
Body Material	Brass
Cable Group	LMR-400
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-TNC
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	8 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

031-68 Series

Part	Dielectric Material	Frequency - Max [Max]	Shield Termination	Center Contact Plating	Mounting Type	Connector Type	Mating Cycles	Connector Style	Number of Ports	Housing Color	Body Finish	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Contact Termination	Center Contact Material	Cable Group	Includes	Mounting Feature	Cable Group	Fastening Type	Features
Amphenol RF 031-6872	Polytetrafluoroethylene (PTFE)	8 GHz	Crimp	Gold	Free Hanging (In-Line)	Male Pin Plug	500	TNC	1	Silver	Nickel	Brass	-65 ░C	165 °C	50 Ohms	Solder	Brass	LMR-400
Amphenol RF 031-6825	Polytetrafluoroethylene (PTFE)	6000 MHz	Crimp	Gold	Free Hanging (In-Line)	Male Pin Plug	500	TNC	1	Silver	Nickel	Brass	-40 °C	130 °C	50 Ohms	Solder	Brass	LMR-240	1 Connector 1 Ferrule
Amphenol RF 031-6823	Polytetrafluoroethylene (PTFE)	6000 MHz	Crimp	Gold	Free Hanging (In-Line)	Female Socket Jack	500	TNC	1	Silver	Nickel	Brass	-65 ░C	165 °C	50 Ohms	Solder	Beryllium Copper	LMR-195	1 Connector 1 Ferrule
Amphenol RF 031-6875	Polytetrafluoroethylene (PTFE)	8 GHz	Crimp	Gold	Free Hanging (In-Line)	Jack Male Pin	500	RP-TNC	1	Silver	Nickel	Brass	-65 ░C	165 °C	50 Ohms	Solder	Brass	LMR-400
Amphenol RF 031-6843-BC	Polytetrafluoroethylene (PTFE)	4 GHz	Crimp	Gold		Female Socket Jack	500	BNC	1	Black	Chromate	Brass	-40 °C	85 °C	50 Ohms	Crimp	Beryllium Copper	RG-178		Bulkhead - Front Side Nut	196	Bayonet Lock
Amphenol RF 031-6887	Polytetrafluoroethylene (PTFE)	11 GHz	Solder	Gold		Female Socket Jack	500	TNC	1	Silver	Nickel	Brass	-65 ░C	165 °C	50 Ohms	Solder	Beryllium Copper			Flange			Extended Insulation
Amphenol RF 031-6877	Polytetrafluoroethylene (PTFE)	8 GHz	Crimp	Gold		Jack Male Pin	500	RP-TNC	1	Silver	Nickel	Brass	-65 ░C	165 °C	50 Ohms	Solder	Brass	LMR-400		Bulkhead - Front Side Nut
Amphenol RF 031-6876	Polytetrafluoroethylene (PTFE)	8 GHz	Crimp	Gold	Free Hanging (In-Line)	Female Socket Plug	500	RP-TNC	1	Silver	Nickel	Brass	-65 ░C	165 °C	50 Ohms	Solder	Beryllium Copper	LMR-400
Amphenol RF 031-6861	Polytetrafluoroethylene (PTFE)	12.4 GHz	Crimp	Gold	Free Hanging (In-Line)	Male Pin Plug	500	BNC	1	Silver	Nickel	Phosphor Bronze	-65 ░C	165 °C	50 Ohms	Solder	Brass	LMR-240	1 Connector 1 Contact 1 Ferrule 1 Insulator			Bayonet Lock
Amphenol RF 031-6874	Polytetrafluoroethylene (PTFE)	8 GHz	Crimp	Gold		Female Socket Jack	500	TNC	1	Silver	Nickel	Brass	-65 ░C	165 °C	50 Ohms	Solder	Beryllium Copper	LMR-400		Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 14.75
		10	$ 13.08
		25	$ 12.57
		50	$ 12.07
		100	$ 11.40

Description

General part information

031-68 Series

RP-TNC Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line) Solder
