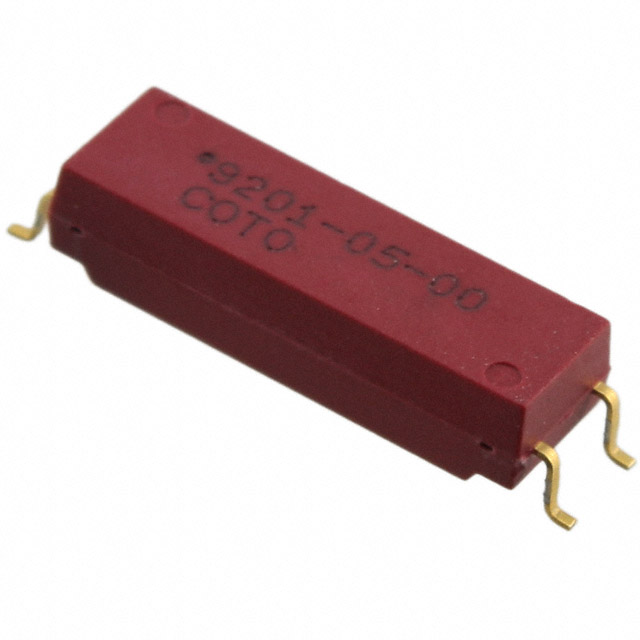

9201-05-00

Active

Coto Technology

RELAY REED SPST 500MA 5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

9201-05-00

Active

Coto Technology

RELAY REED SPST 500MA 5V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9201-05-00

Coil Current	20 mA
Coil Resistance	250 Ohms
Coil Type	Non Latching
Coil Voltage	5 VDC
Contact Form	SPST-NO (1 Form A)
Contact Rating (Current)	0.5 A
Mounting Type	Surface Mount
Must Operate Voltage	3.75 VDC
Must Release Voltage	0.4 VDC
Operate Time	0.4 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Release Time	0.1 ms
Seal Rating	Sealed - Hermetically
Switching Voltage	200 VDC, 200 VAC
Termination Style	Gull Wing

9201 Series

Part	Release Time	Must Operate Voltage	Switching Voltage	Operate Time	Must Release Voltage	Termination Style	Coil Resistance	Coil Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Rating (Current)	Contact Form	Coil Current	Coil Type	Seal Rating
Coto Technology 9201-05-30	0.1 ms	3.75 VDC	200 VDC 200 VAC	0.4 ms	0.4 VDC	PC Pin	250 Ohms	5 VDC	85 °C	-20 C	Through Hole	0.5 A	SPST-NO (1 Form A)	20 mA	Non Latching	Sealed - Hermetically
Coto Technology 9201-12-20TR	0.1 ms	9 VDC	200 VDC 200 VAC	0.4 ms	1 VDC	J Lead	650 Ohms	12 VDC	85 °C	-20 C	Surface Mount	0.5 A	SPST-NO (1 Form A)	18.5 mA	Non Latching	Sealed - Hermetically
Coto Technology 9201-05-00	0.1 ms	3.75 VDC	200 VDC 200 VAC	0.4 ms	0.4 VDC	Gull Wing	250 Ohms	5 VDC	85 °C	-20 C	Surface Mount	0.5 A	SPST-NO (1 Form A)	20 mA	Non Latching	Sealed - Hermetically
Coto Technology 9201-12-20	0.1 ms	9 VDC	200 VDC 200 VAC	0.4 ms	1 VDC	J Lead	650 Ohms	12 VDC	85 °C	-20 C	Surface Mount	0.5 A	SPST-NO (1 Form A)	18.5 mA	Non Latching	Sealed - Hermetically
Coto Technology 9201-05-20	0.1 ms	3.75 VDC	200 VDC 200 VAC	0.4 ms	0.4 VDC	J Lead	250 Ohms	5 VDC	85 °C	-20 C	Surface Mount	0.5 A	SPST-NO (1 Form A)	20 mA	Non Latching	Sealed - Hermetically
Coto Technology 9201-05-20TR	0.1 ms	3.75 VDC	200 VDC 200 VAC	0.4 ms	0.4 VDC	J Lead	250 Ohms	5 VDC	85 °C	-20 C	Surface Mount	0.5 A	SPST-NO (1 Form A)	20 mA	Non Latching	Sealed - Hermetically
Coto Technology 9201-12-10	0.1 ms	9 VDC	200 VDC 200 VAC	0.4 ms	1 VDC	Axial	650 Ohms	12 VDC	85 °C	-20 C	Surface Mount	0.5 A	SPST-NO (1 Form A)	18.5 mA	Non Latching	Sealed - Hermetically
Coto Technology 9201-12-30	0.1 ms	9 VDC	200 VDC 200 VAC	0.4 ms	1 VDC	PC Pin	650 Ohms	12 VDC	85 °C	-20 C	Through Hole	0.5 A	SPST-NO (1 Form A)	18.5 mA	Non Latching	Sealed - Hermetically
Coto Technology 9201-12-00	0.1 ms	9 VDC	200 VDC 200 VAC	0.4 ms	1 VDC	Gull Wing	650 Ohms	12 VDC	85 °C	-20 C	Surface Mount	0.5 A	SPST-NO (1 Form A)	18.5 mA	Non Latching	Sealed - Hermetically

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 9.44
		10	$ 8.25
		25	$ 7.82
		50	$ 7.50
		100	$ 7.20
		250	$ 6.83
		500	$ 6.55
		1000	$ 6.29

Description

General part information

9201 Series

RELAY REED SPST 500MA 5V
